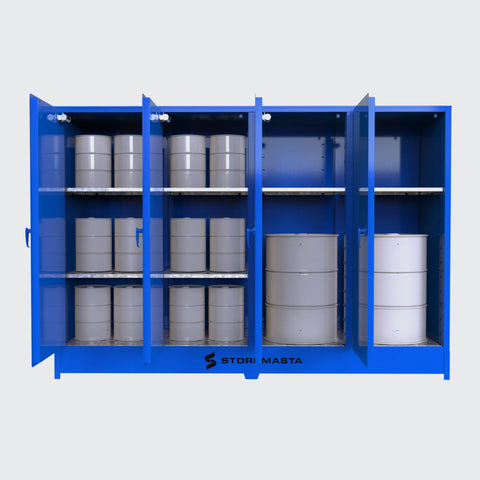

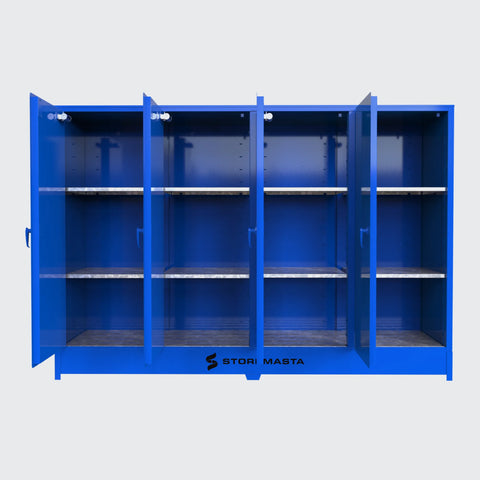

850L - Large Capacity Corrosive Substance Storage Cabinet

SKU: PS8508SS
Built To Last Shipped Australia Wide Easy To Assemble

Calculate shipping at checkout.


  Show more

Do you need a compliant chemical safety cabinet, purpose built for larger volumes of Class 8 corrosive substances? The PS8508SS is heavy duty safety (25% stronger than standard) and able to safely hold and isolate 850 litres of corrosives from incompatible substances and Dangerous Goods.

Features of the PS8508SS include: 270 litre spill containment sump (with drain plug), twin hydraulic-action doors which close in sequence; 6 adjustable layers of shelving; vent openings and flash arrestors that fit your mechanical ventilation system.

Features
  • Manufactured from 25% heavier materials than minimum requirement
  • Double walled sheet steel construction with a 40mm thermic air barrier
  • High capacity liquid tight sump to contain spills with a fixed suspended perforated floor - 150mm deep
  • The sump has the capacity to contain 25% of the aggregate capacity of the cabinet
  • Self-closing, close fitting doors held shut by catches at 2 points. The doors do not open inwards and are capable of being opened from within the cabinet
  • Unique spark-proof, self latching locking system with lockable handle
  • Vent openings with built-in flash arrestors [for mechanical ventilation systems]
  • Continuous stainless steel pin hinging for maximum strength and reliability
  • State of the art powder coat finish for high durability and performance
  • PVC spill trays on shelves for corrosion protection
  • Safety signs and directions that comply with AS 1216 and AS 1319
  • Designed and manufactured in full conformance to AS 3780:2008 - The storage and handling of corrosive substances
Dimensions (mm)
External H 1880 W 2588 D 804
Internal H 1608 W 2500 D 718
Storage Capacity
Max Capacity 850L
Winchester Size 0.5L 2.5L 5L
Capacity 1980**** 360**** 144****
Drum Size 4L 20L 60L 205L
Capacity 180***** 48 12 4
****4 Storage levels *****5 storage levels
Dangerous Goods Compliance Specifications
Complies with AS3780 - 2008
Sump Capacity 269L
Other Specifications
Weight 375.0 kg
Shelf Levels 6
Storage Levels 3
Shelf Thickness (mm) 28
Shelf spacing (mm) 100
No. of Shelf Lugs 16
