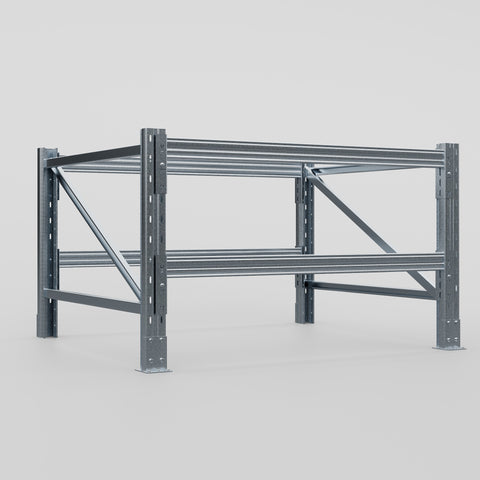

Pallet Racking Hot Dip Galvanised - H914 x D1220mm - Full Bay
Built To Last
Shipped Australia Wide
Australian Design
Calculate shipping at checkout.
Description
Steelspan Pallet Racking is certified in Australia to Australian Standard 4084-2023.
Beam box height: 80/100/140mm
Beam box depth 50mm
NOTE: add 90mm to width per End Frame. Full Bays have two End Frames, whereas Add On Bays have one End Frame and are designed to extend Full Bays.
Pitch: 76.2mm
Total Bay Capacity: Up to 8400kg
Beam Locking Pins included
Concrete Anchors included
Finish:
- Frame: Pre Galvanised
- Beam: Hot Dipped Galvanised
Height: 914mm
Depth: 1220mm
Width is based on Beam selected. See dimensions guide below.
