100L - Flammable Solids Storage Cabinet
Built To Last
Shipped Australia Wide
Easy to Assemble
Calculate shipping at checkout.
Description
The SC10041 is a chemical storage cabinet for storing up to 100 litres of Class 4 Flammable Solids indoors. This safety cabinet is free standing and features hydraulic-action doors that close automatically without generating sparks.

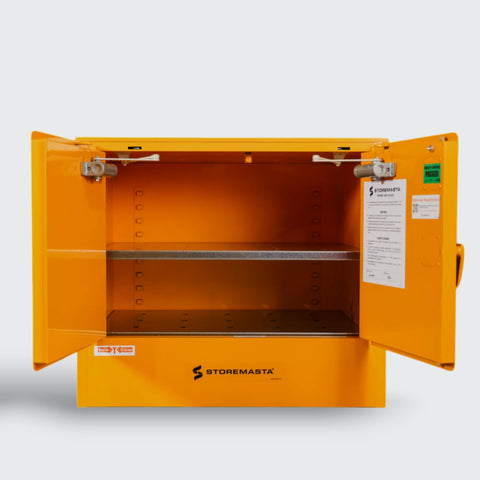

Inside the SC10041 are fully adjustable shelves (along 100mm increments) — each perforated to maximise air flow, a 45 litre capacity spill containment sump, plus built-in flash arrestors and vent openings. The unit arrives complete with compliant warning placards.
Features
- Double walled sheet steel construction with a 40mm thermic air barrier
- High capacity liquid tight sump to contain spills - 150mm deep
- Self-closing, close fitting doors that automatically release in the event of a build-up of pressure within the cabinet
- Built in flash arrestors and vent openings [for mechanical ventilation systems]
- Strong fully adjustable shelving perforated for free air movement, 100mm adjustment increments
- Sequential door closing system
- Stainless steel pin with continuous hinging for strength and reliability
- State of the art powder coat finish for high durability and performance
- Distinct safety signs and directions that comply with AS 1216 and AS 1319
- Designed and manufactured in full conformance to AS/NZS 5026:2012 - The storage and handling of class 4 dangerous goods.
Dimensions (mm)
| External | H 800 | W 920 | D 615 |
| Internal | H 553 | W 838 | D 535 |
Storage Capacity
| Max Capacity | 100L |
| Winchester Size | 0.5L | 2.5L | 5L |
| Capacity | 96 | 18 | 8 |
| Drum Size | 4L | 20L | 60L | 205L |
| Capacity | 16 | 4 | - | - |
Dangerous Goods Compliance Specifications
| Complies with | AS/NZS - 5026 - 2012 |
| Sump Capacity | 67L |
Other Specifications
| Weight | 65.0 kg |
| Shelf Levels | 2 |
| Storage Levels | 2 |
| Shelf Thickness (mm) | 28 |
| Shelf spacing (mm) | 50 |
| No. of Shelf Lugs | 11 |
