Description
The SC10052 is a chemical storage cabinet purpose-built for holding 100 litres of Class 5.2 Organic Peroxides indoors. Safely isolate organic peroxides from flammables, light and heat in this fully compliant safety cabinet made from double-walled sheet steel.
Features of the SC10052 include: 150mm deep spill containment sump (45 litre capacity); twin hydraulic-action doors which close automatically in sequence; perforated shelving that is fully adjustable; mandatory warning placards.
Features
- Double walled sheet steel construction with a 40mm thermic air barrier
- High capacity liquid tight sump to contain spills - 150mm deep
- Self-closing, close fitting doors that automatically release in the event of a build-up of pressure within the cabinet

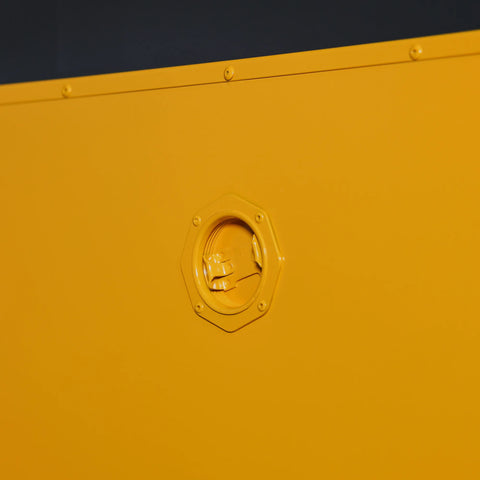

- Built in flash arrestors and vent openings [for mechanical ventilation systems]

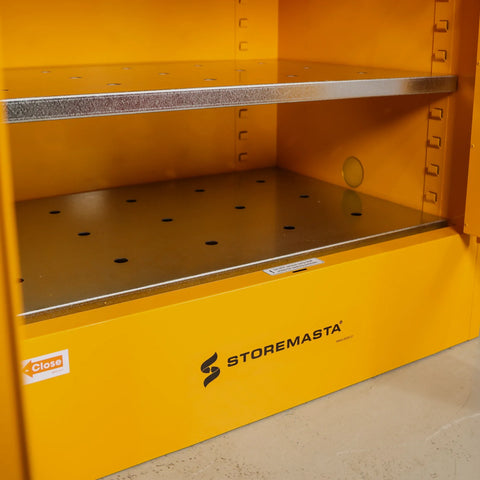

- Strong fully adjustable shelving perforated for free air movement, 100mm adjustment increments

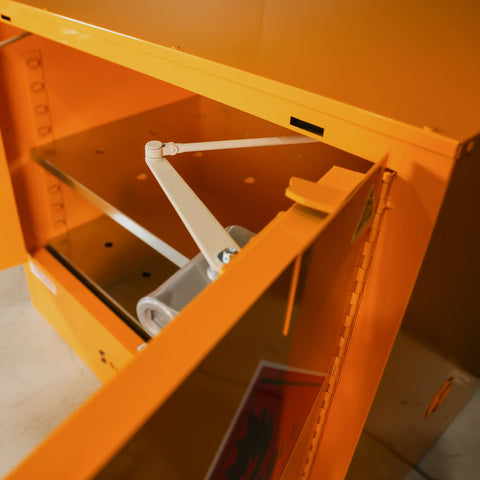

- Sequential door closing system
- Stainless steel pin with continuous hinging for strength and reliability
- State of the art powder coat finish for high durability and performance

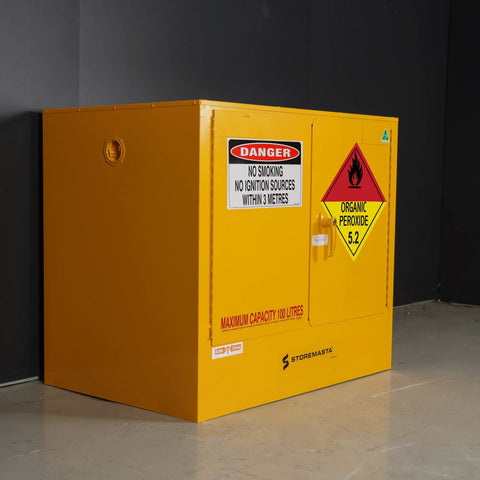

- Distinct safety signs and directions that comply with AS 1216 and AS 1319
- Designed and manufactured in full conformance to AS 2714:2008 - The storage and handling of organic peroxides
Dimensions (mm)
| External | H 800 | W 920 | D 615 |
| Internal | H 553 | W 838 | D 535 |
Storage Capacity
| Max Capacity | 100L |
| Winchester Size | 0.5L | 2.5L | 5L |
| Capacity | 96 | 18 | 8 |
| Drum Size | 4L | 20L | 60L | 205L |
| Capacity | 16 | 4 | - | - |
Dangerous Goods Compliance Specifications
| Complies with | AS2714 - 2008 |
| Sump Capacity | 67L |
Other Specifications
| Weight | 65.0 kg |
| Shelf Levels | 2 |
| Storage Levels | 2 |
| Shelf Thickness (mm) | 28 |
| Shelf spacing (mm) | 50 |
| No. of Shelf Lugs | 11 |
