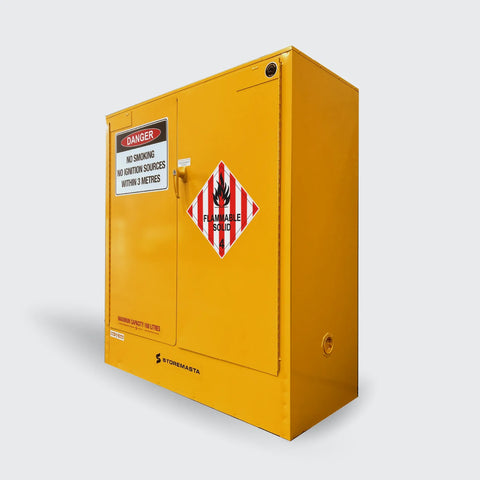

160L - Flammable Solids Storage Cabinet
SKU: SC1604.1
Built To Last
Shipped Australia Wide
Easy To Assemble
Choose options
Select Title
Out of stock
Price
$2,651.78
Calculate shipping at checkout.

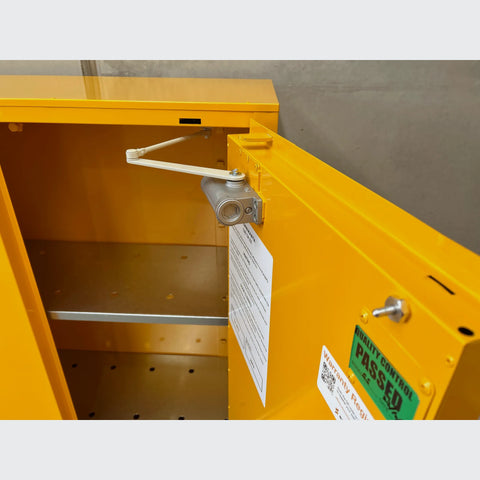

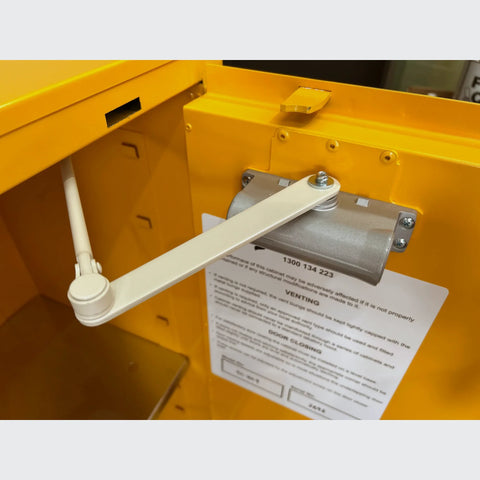

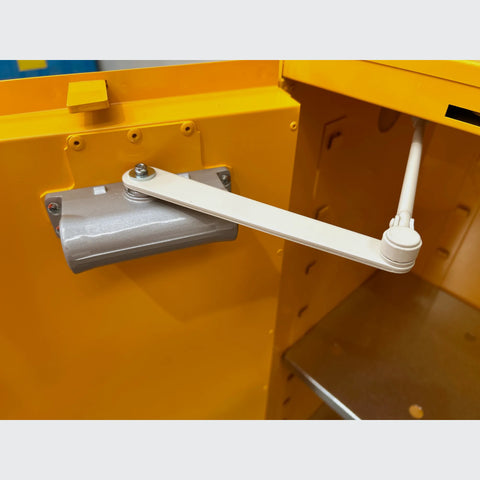

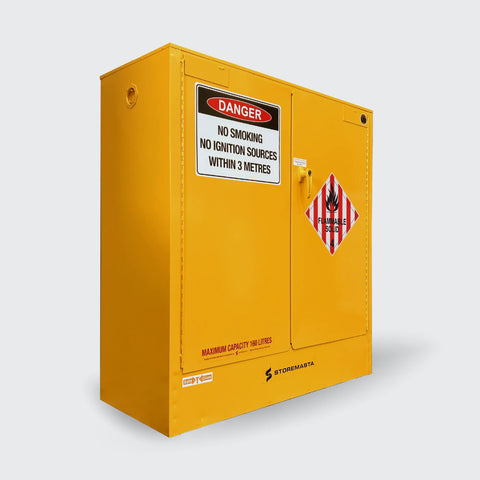

The SC16041 is a free standing safety cabinet for storing up to 160 litres of Class 4 Flammable Solids indoors. This chemical storage cabinet features STOREMASTA’s innovative SAFE-T-CLOSE system — a set of hydraulic-action doors that close automatically without generating sparks.
Inside the SC16041 is a set of fully adjustable shelves (each perforated to maximise air flow), a liquid tight spill containment sump (57 litre capacity), plus built-in flash arrestors and vent openings that sync with your mechanical ventilation system. The unit has compliant warning placards.
Features
- Double walled sheet steel construction with a 40mm thermic air barrier

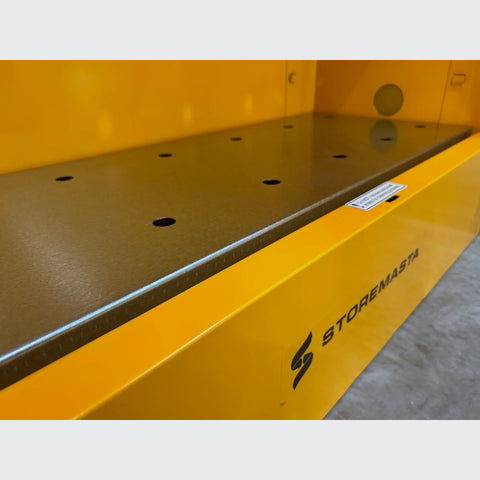

- High capacity liquid tight sump to contain spills - 150mm deep
- Self-closing, close fitting doors that automatically release in the event of a build-up of pressure within the cabinet

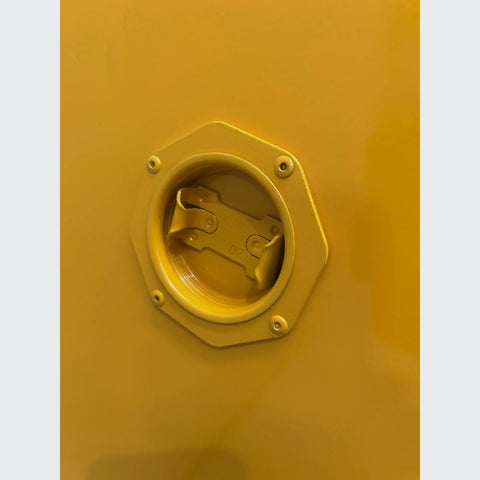

- Built in flash arrestors and vent openings [for mechanical ventilation systems]

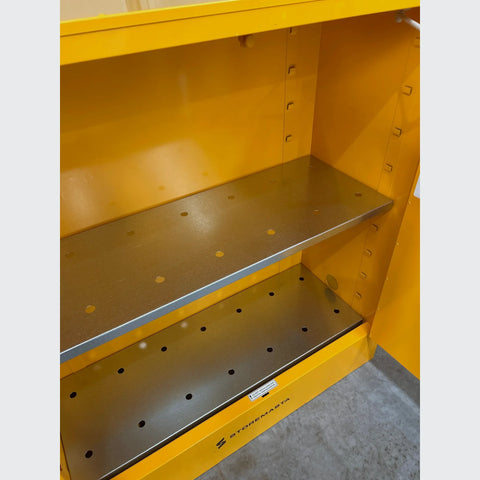

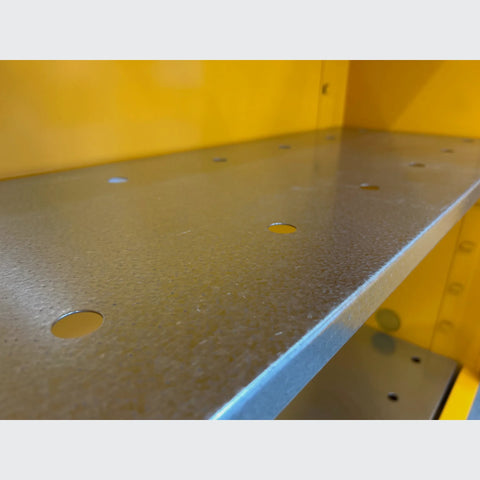

- Strong fully adjustable shelving perforated for free air movement, 100mm adjustment increments
- Sequential door closing system
- Stainless steel pin with continuous hinging for strength and reliability
- State of the art powder coat finish for high durability and performance

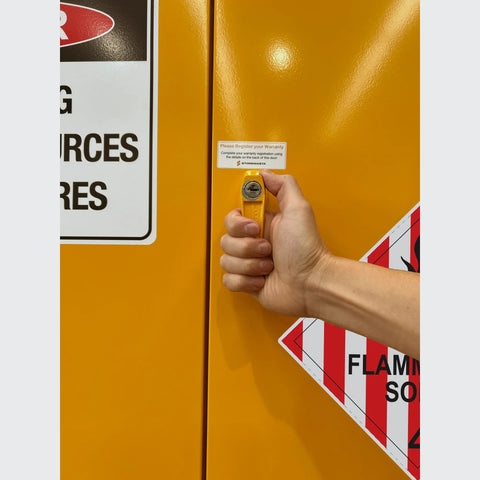

- Distinct safety signs and directions that comply with AS 1216 and AS 1319
- Designed and manufactured in full conformance to AS/NZS 5026:2012 - The storage and handling of class 4 dangerous goods.
Dimensions (mm)
External | H 1220 | W 1100 | D 450 |
Internal | H 973 | W 1018 | D 370 |
Storage Capacity
Max Capacity | 160L |
Winchester Size | 0.5L | 2.5L | 5L |
Capacity | 225*** | 28 | 10 |
Drum Size | 4L | 20L | 60L | 205L |
Capacity | 30*** | 6 | - | - |
Dangerous Goods Compliance Specifications
Complies with | AS/NZS - 5026 - 2012 |
Sump Capacity | 56L |
Other Specifications
Weight | 78.0 kg |
Shelf Levels | 2 |
Storage Levels | 2 |
Shelf Thickness (mm) | 28 |
Shelf spacing (mm) | 100 |
No. of Shelf Lugs | 10 |
