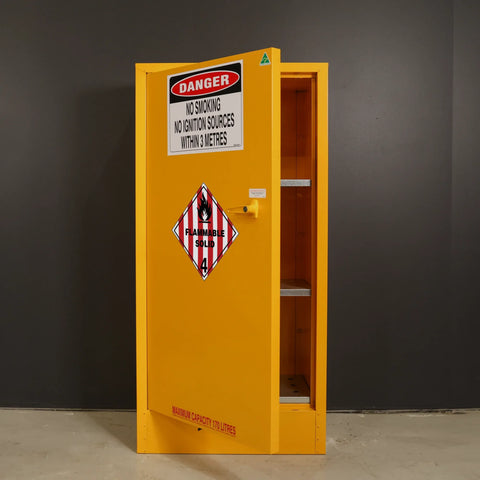

170L - Flammable Solid Storage Cabinet
Built To Last
Shipped Australia Wide
Easy to Assemble
Calculate shipping and choose delivery/install options at checkout.
Description
The SC17041 is an indoor safety cabinet ready to store 170 litres of Class 4 Flammable Solids. This chemical storage cabinet utilises STOREMASTA’s high-tech SAFE-T-CLOSE system — a single hydraulic-action door that closes automatically without generating sparks.

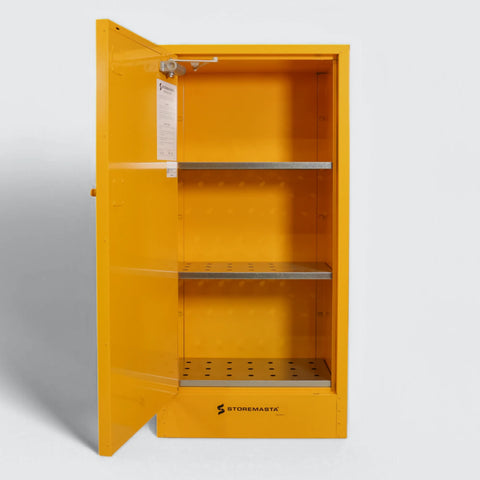

Inside the SC17041 are fully adjustable shelves (perforated to allow the full movement of air); a liquid tight spill containment sump (35 litre capacity), plus flash arrestors and vent openings that fit a mechanical ventilation system. The unit is free-standing and comes with compliant warning placards.
Features
- Double walled sheet steel construction with a 40mm thermic air barrier
- High capacity liquid tight sump to contain spills - 150mm deep
- Self-closing, close fitting doors that automatically release in the event of a build-up of pressure within the cabinet
- Built in flash arrestors and vent openings [for mechanical ventilation systems]

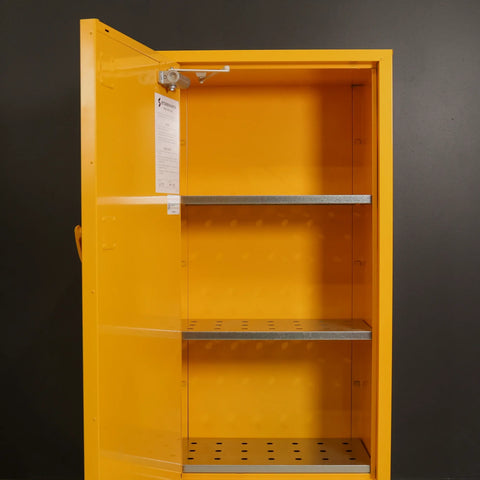

- Strong fully adjustable shelving perforated for free air movement, 100mm adjustment increments
- Sequential door closing system
- Stainless steel pin with continuous hinging for strength and reliability
- State of the art powder coat finish for high durability and performance

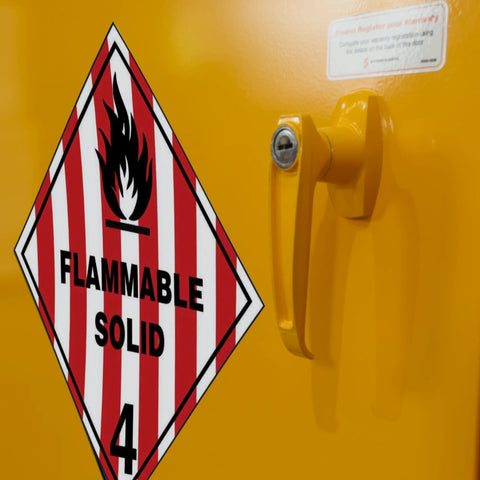

- Distinct safety signs and directions that comply with AS 1216 and AS 1319
- Designed and manufactured in full conformance to AS/NZS 5026:2012 - The storage and handling of class 4 dangerous goods.
Dimensions (mm)
| External | H 1750 | W 700 | D 450 |
| Internal | H 1503 | W 618 | D 370 |
Storage Capacity
| Max Capacity | 170L |
| Winchester Size | 0.5L | 2.5L | 5L |
| Capacity | 225***** | 24 | 9 |
| Drum Size | 4L | 20L | 60L | 205L |
| Capacity | 30***** | 6 | - | - |
Dangerous Goods Compliance Specifications
| Complies with | AS/NZS - 5026 - 2012 |
| Sump Capacity | 34L |
Other Specifications
| Weight | 80.0 kg |
| Shelf Levels | 2 |
| Storage Levels | 3 |
| Shelf Thickness (mm) | 28 |
| Shelf spacing (mm) | 100 |
| No. of Shelf Lugs | 15 |
