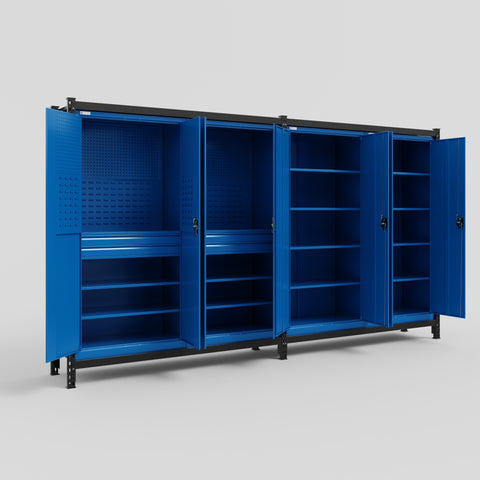

C22-2 Modular Locker Cabinet System - H2100mm x W3780mm

SKU: C22-2-LC-B ISBN:
Built To Last Shipped Australia Wide Easy To Assemble

INVE$T MORE. $AVE MORE.
Invest $1,000+ | Save over $100
Invest $5,000+ | Save over $750
Invest $10,000+ | Save over $2,000
Discount automatically applied in cart.

PREVIEW SELECTED OPTIONS

Sale discount automatically applied in cart. Calculate shipping at checkout.

  Show more

The C22 Modular Cabinet System is a modular storage system designed for the rigours of industrial workspaces and built to last. With our modular steel frame you can configure the perfect system for your workspace or garage and have it delivered anywhere in Australia.

Key Features:

  • Heavy duty cabinet storage system
  • Free standing
  • Industrial strength
  • Secure key lockable drawers and cabinets
  • Quality ball bearing drawer runners
  • Tool drawer dividers
  • Quick installation (Drawers and Overheads pre-assembled, Cabinets flat-packed)
  • Integrates with any other Steelspan storage system module

Previously: Module 3, 4, 11 and 12

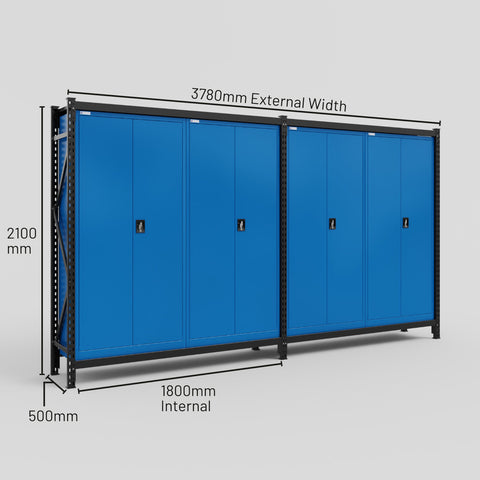

Width: 3780mm
Height: 2100mm
Depth: 500mm

  • Powder coated steel cabinet and frame
  • 4 x adjustable shelves plus floor per cabinet.
  • Shelf Load capacity: 100kg/UDL per shelf level
  • Cabinet Colours - Blue, Dark Grey or White,
  • Steel Frame - Black

Options:

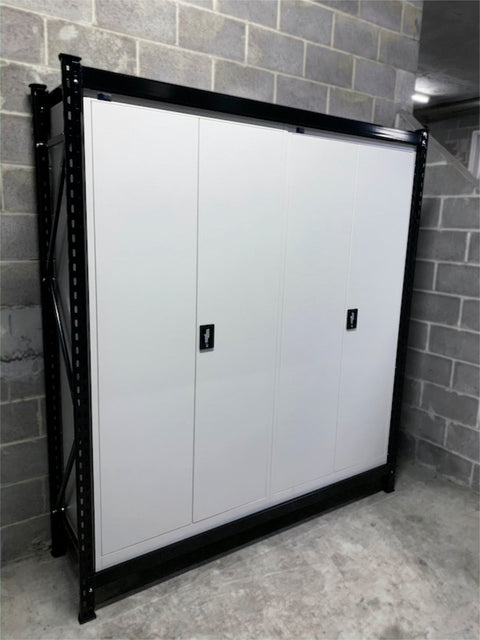

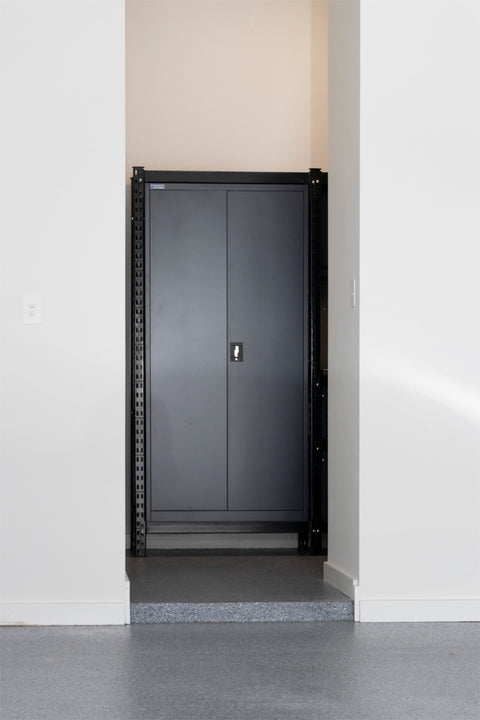

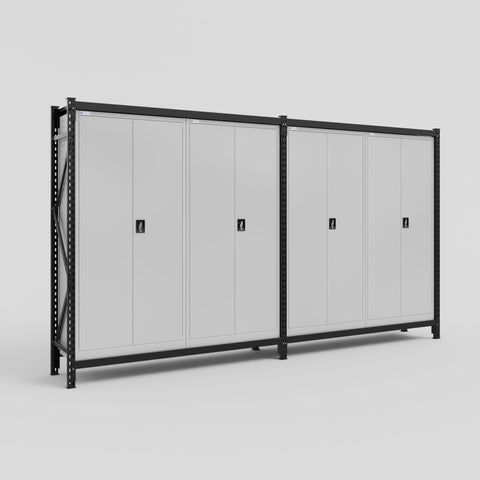

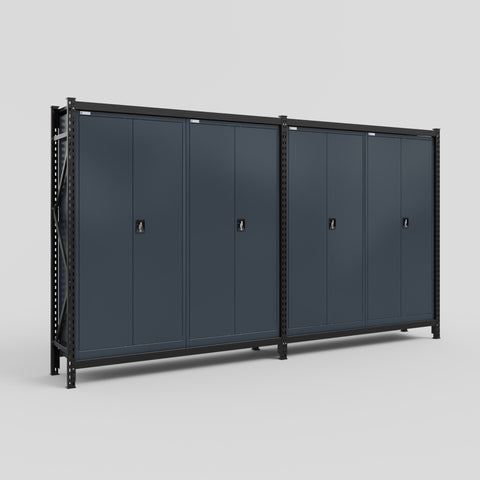

Standard Cabinet with 4 Shelves

Features:
- 4 adjustable shelves and floor
- Can support up to 100kg UDL per shelf level

Dimensions:
Width: 890mm
Height: 1865mm
Depth: 455mm
Cabinet Internal Width: 888mm
Cabinet Internal Height: 1757mm
Cabinet Internal Depth: 415mm

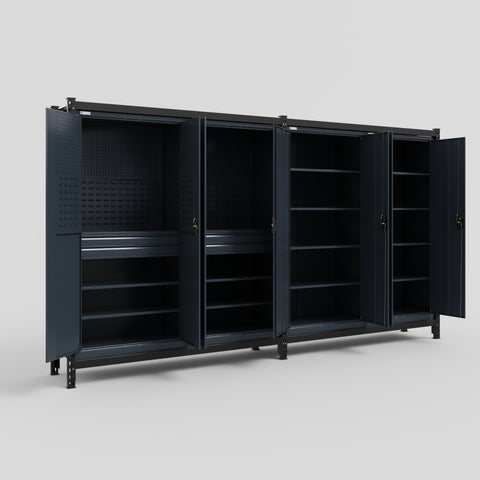

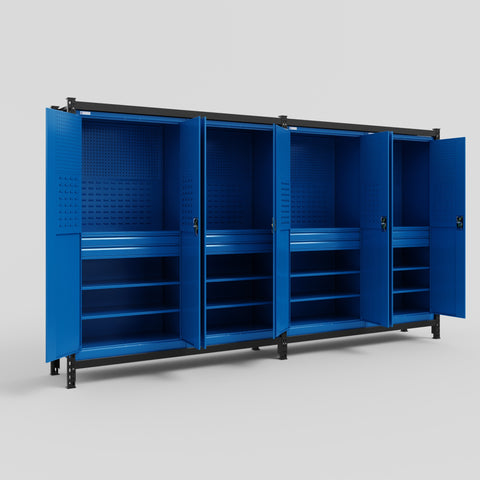

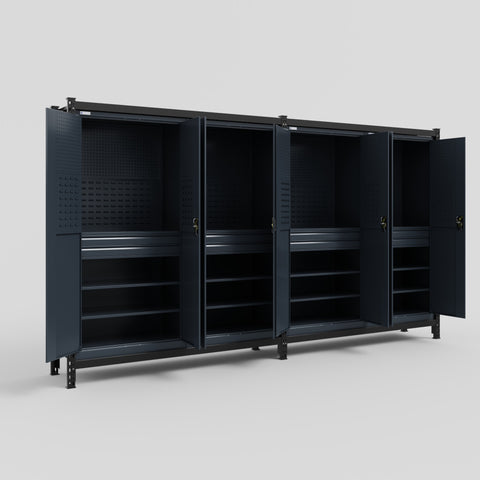

Tool Cabinet

Features:
- 2 x Drawers, 2 x Shelf Levels
- Combination of Louvred Panel and Pegboard storage areas.

Dimensions:
Width: 890mm
Height: 1865mm
Depth: 455mm
Cabinet Internal Width: 888mm
Cabinet Internal Height: 1757mm
Cabinet Internal Depth: 415mm

Drawer Internals (Both drawers are identical)
Width: 748mm
Depth: 387mm
Height: 77mm

Drawer Dividers Sections adjust in 12mm increments Horizontally and Vertically

Shelf Depth: 408mm

Height of Pegboard and Louvre Panel Storage area: 870mm

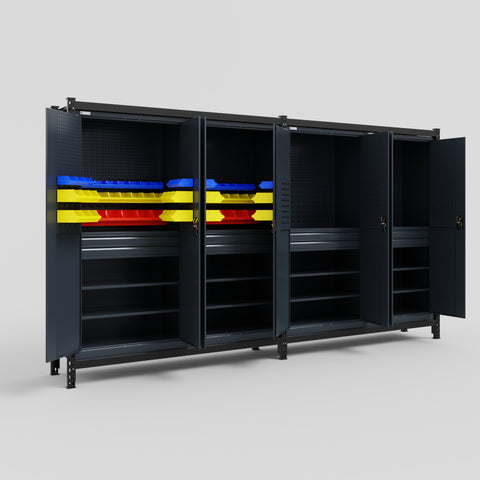

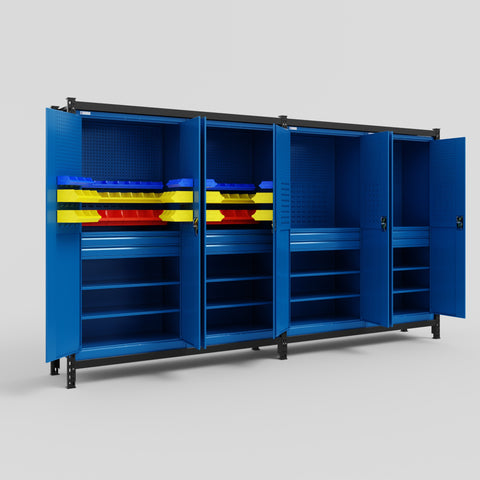

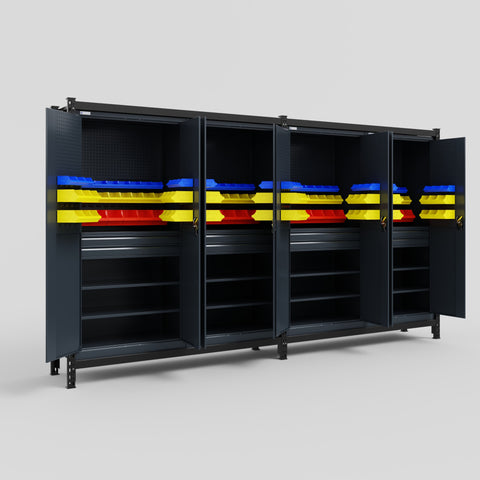

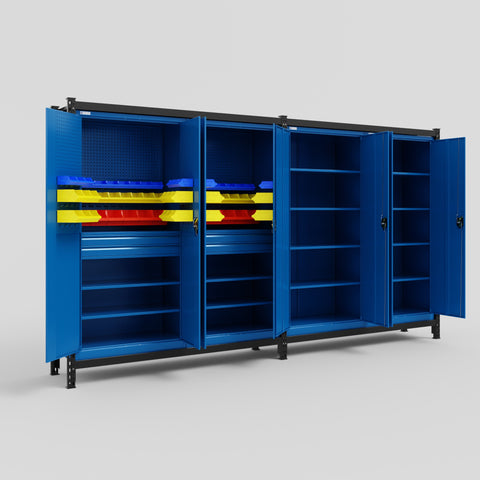

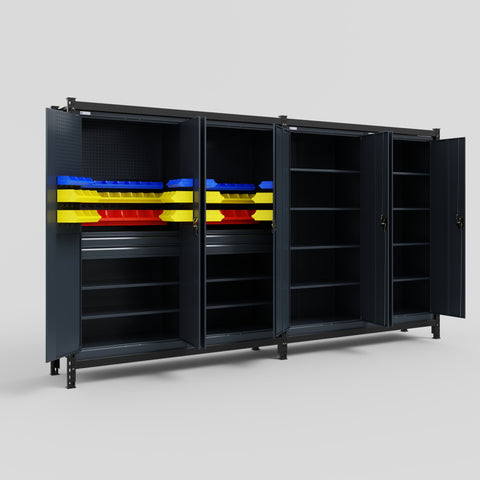

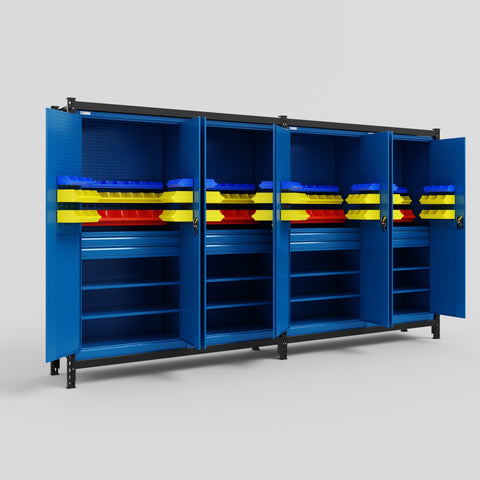

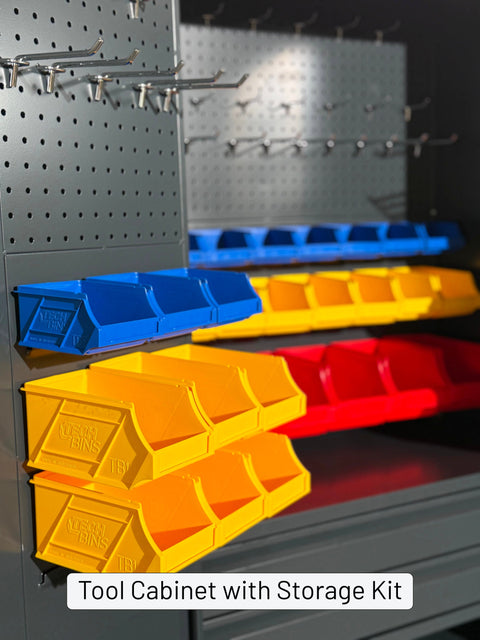

Tool Cabinet with Storage Kit

Features:
- 2 x Drawers, 2 x Shelf Levels
- Combination of Louvred Panel and Pegboard storage areas.

Dimensions:
Width: 890mm
Height: 1865mm
Depth: 455mm
Cabinet Internal Width: 888mm
Cabinet Internal Height: 1757mm
Cabinet Internal Depth: 415mm

Drawer Internals (Both drawers are identical)
Width: 748mm
Depth: 387mm
Height: 77mm

Drawer Dividers Sections adjust in 12mm increments Horizontally and Vertically

Shelf Depth: 408mm

Height of Pegboard and Louvre Panel Storage area: 870mm

Includes:
- 100mm Pegboard Hook x 20 (not pictured)
- 50mm Pegboard Hook x 20 (not pictured)
- 2.5L/9KG Capacity Picking Bin (Red) x 6
- 1L/5KG Capacity Picking Bin (Yellow) x 20
- 0.5L/2KG Capacity Picking Bin (Blue) x 14

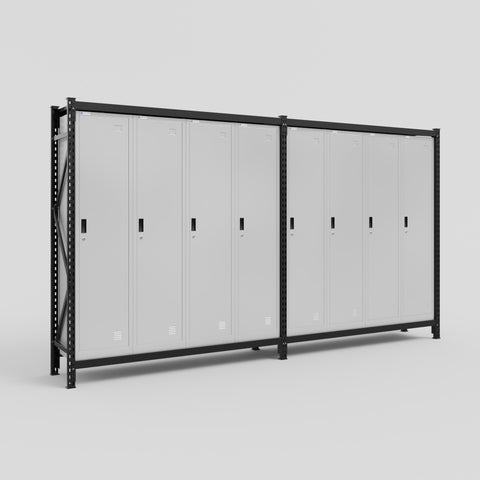

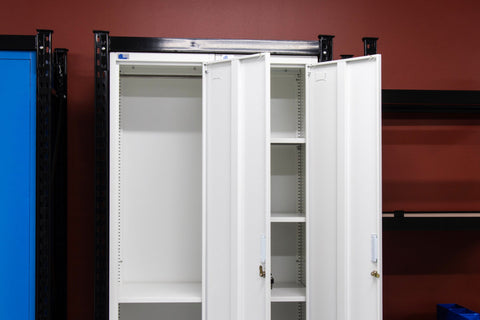

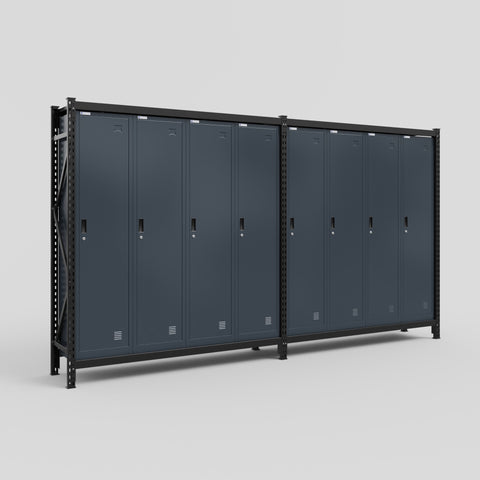

Locker Cabinet

Features:
- 4 adjustable shelves and floor
- Can support up to 100kg UDL per shelf level

Dimensions:
Width: 445mm
Height: 1865mm
Depth: 455mm
Cabinet Internal Width: 443mm
Cabinet Internal Height: 1757mm
Cabinet Internal Depth: 415mm

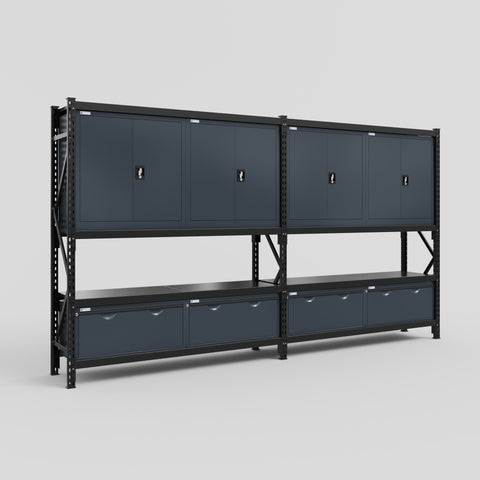

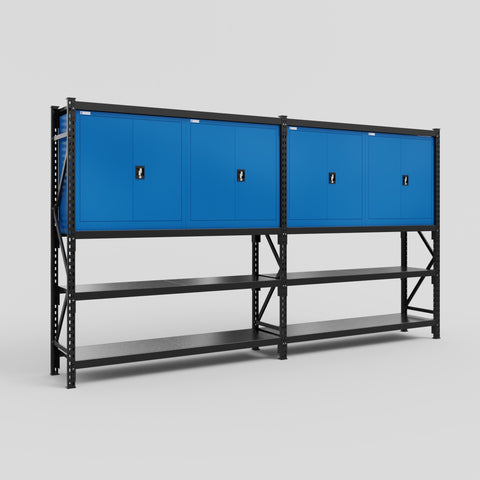

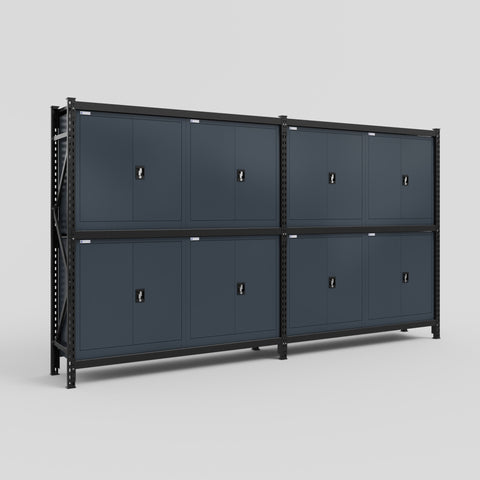

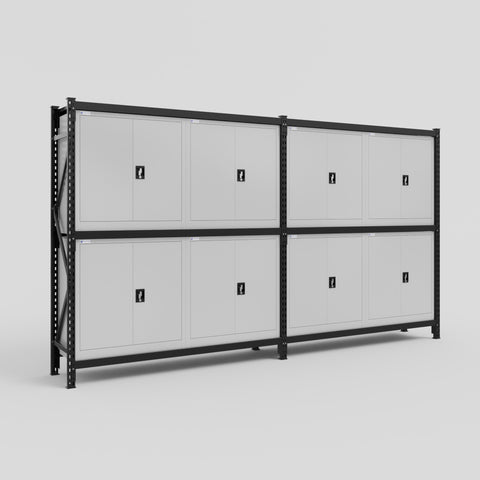

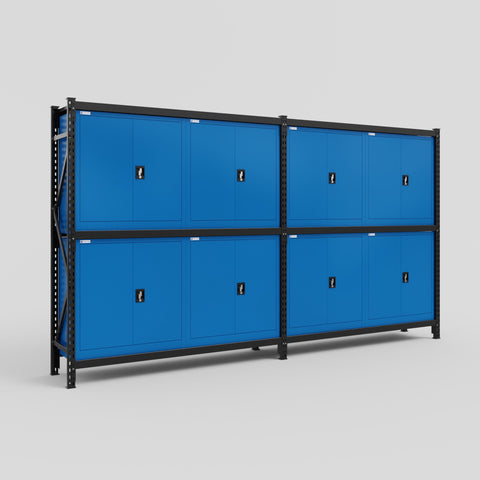

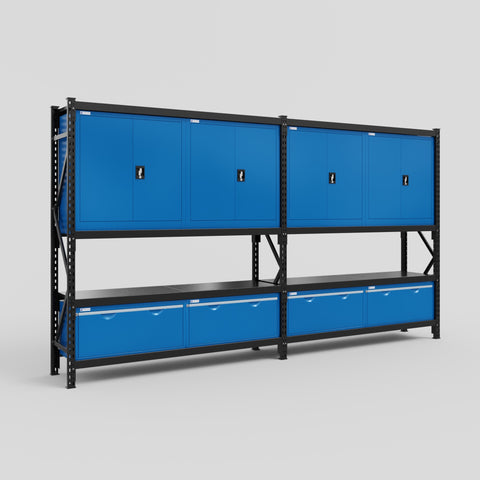

Cabinet 915

Features:
- 2 adjustable shelves and floor
- Can support up to 100kg UDL per shelf level

Dimensions:
Width: 890mm
Height: 915mm
Depth: 455mm
Cabinet Internal Width: 888mm
Cabinet Internal Height: 807mm
Cabinet Internal Depth: 415mm

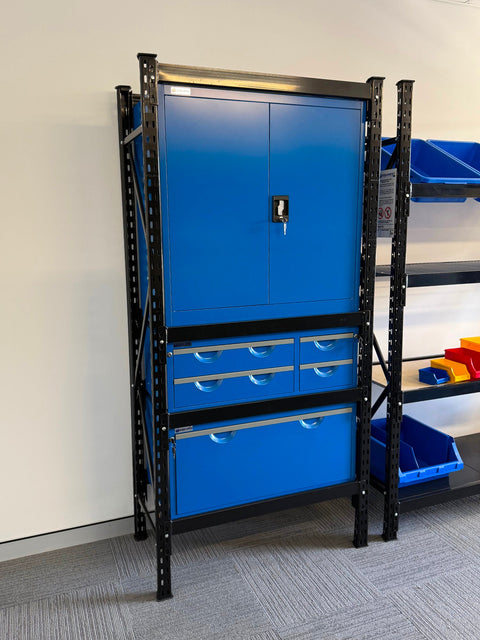

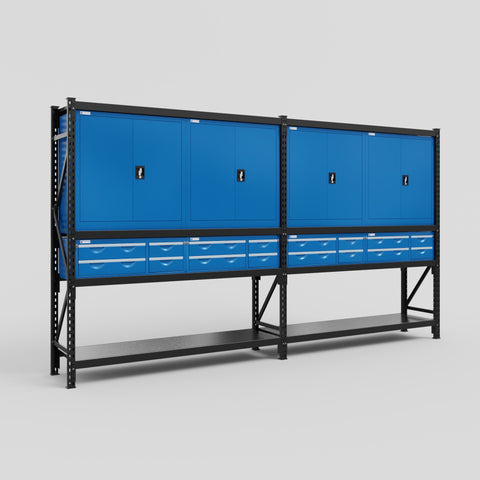

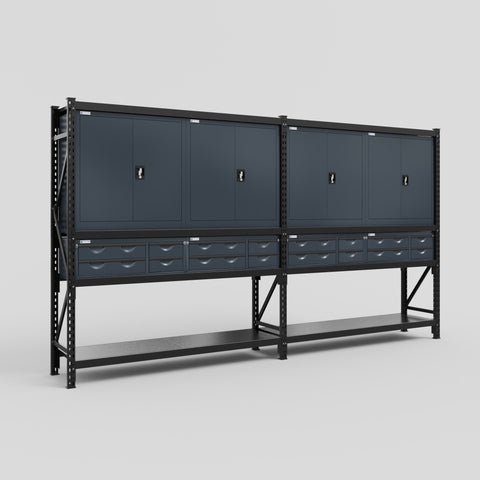

4 Drawer

Features:
- Pre-assembled - no assembly required
- Drawer Dividers included - 2 per drawer
- Industrial strength steel ball-bearing runners
- Lockable for added security and safety

External Dimensions:
Height: 315mm
Width: 890mm
Depth: 455mm

Large Drawer Internal:
Height: 100mm
Width: 490mm
Depth: 370mm

Small Drawer Internal:
Height: 100mm
Width: 220mm
Depth: 370mm

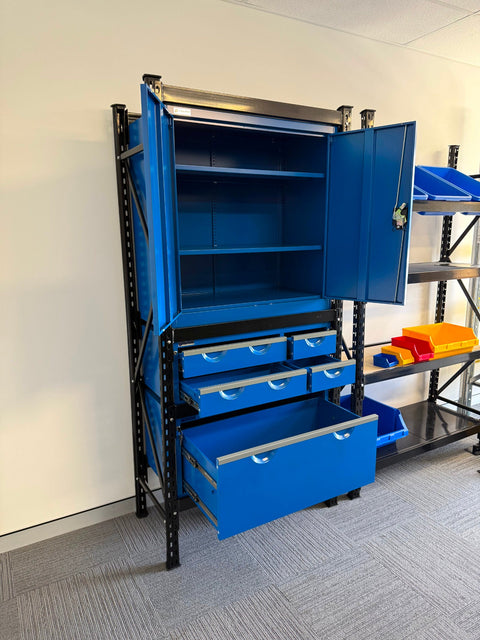

Deep Drawer

External Dimensions:
Height: 415mm
Width: 890mm
Depth: 455mm

Drawer Internal:
Height: 320mm
Width: 810mm
Depth: 370mm

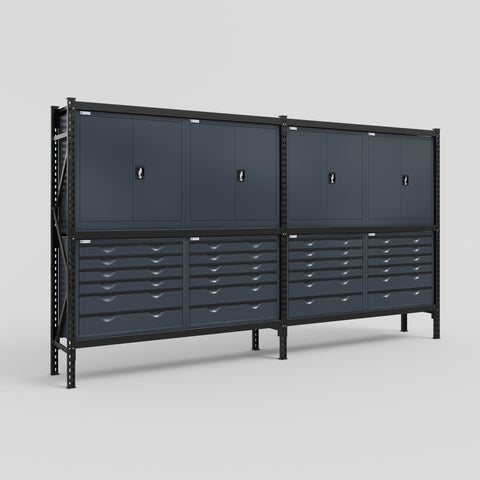

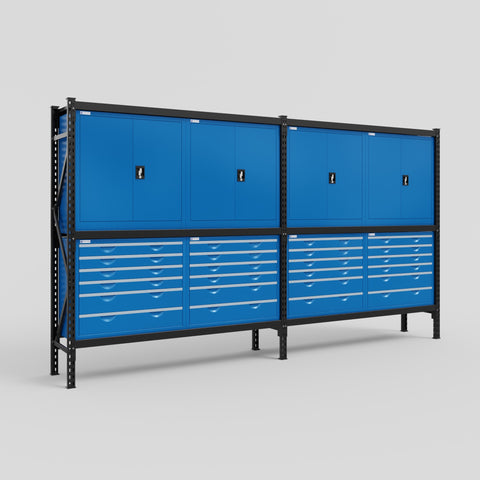

6 Drawer

Features:
- Pre-assembled - no assembly required
- Drawer Dividers included - 2 per drawer
- Industrial strength steel ball-bearing runners
- Lockable for added security and safety

Dimensions:
Width: 890mm
Height: 765mm*
Depth: 455mmCabinet Internal Width: 888mm
Cabinet Internal Height: 650mm
Cabinet Internal Depth: 415mm

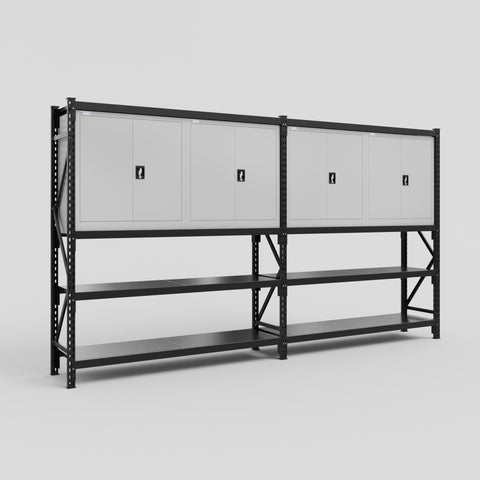

Black Steel Shelf Levels
Features:
- 900mm wide - up to 890kg/UDL per beam pair
- 1800mm wide - up to 450kg/UDL per beam pair



Weight (kg):405.1

Price: $3,139.00 Regular price:
C22-2 Modular Locker Cabinet System - H2100mm x W3780mm
From $2,469.00

Key Features

Why you'll love the C22-2 Modular Locker Cabinet System - H2100mm x W3780mm
Key Lockable

Key Lockable

Keep your tools and belongings safe and secure with our key lockable cabinets. All of our Steel Cabinets ship with keys so you can rest assured that only you will have access to their contents.
Industrial Strength

Industrial Strength

Our Steel Cabinets are constructed from high grade, powder coated steel that is designed to withstand the rigours of Australian workshops and worksites. Designed by Aussies, for Aussies - our Cabinets are built to last and are backed by a 3 year warranty.
Quick Assembly

Quick Assembly

You’ll be up and running in minutes with our easy to follow instructions and simple assembly process. The doors of our Steel Cabinets arrived pre-assembled so all you need to do is screw the panels together and you have a rock solid cabinet ready to load up.
Adjustable Shelves

Adjustable Shelves

The shelves of our Steel Cabinets are adjustable so you can configure them to your needs. Each shelf and the cabinet floor are capable of supporting up to a massive 100kg UDL. Testament to the design and build quality of our products.
