Description

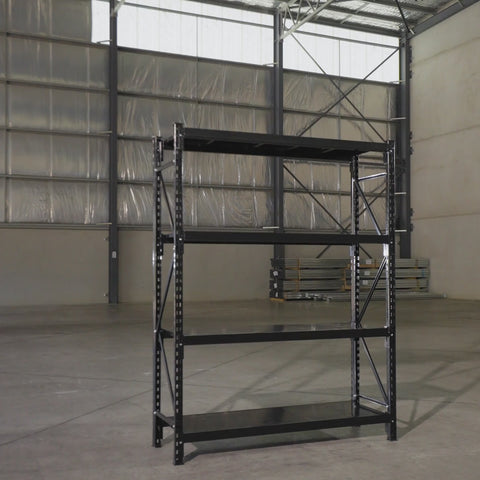

Full bays come with two end frames and are configured to be standalone and can be extended with add-on bays of longspan metal shelving.
View product on your mobile device to see how this system will look and fit into your space with the 3D models in the image gallery. 3D Models are of the 1000mm high x 500mm deep x 900mm wide and the 1000mm high x 500mm deep x 1800mm wide variants.
Features:
- Heavy duty shelving storage system
- All shelves are height adjustable at 50mm increments
- Free standing
- Industrial strength
- Black powder coated steel
- Quick installation
- Integrates with any other Steelspan storage system module
Specifications:
*NOTE: Width dimension shown is for internal measurement (i.e. Beam Length). Add 60mm for each shelving End Frame. So a Full Bay is Beam length plus 120mm ( 2 x End Frame), an Add-On Bay is Beam length plus 60mm (1 x End Frame). For example: A 900mm wide Full Bay of shelving is 900 + 120 = 1020mm wide (external).
- Black powder coated steel frame, beams
- Particleboard shelving
- Load capacity
Beam Length | Load Capacity (per beam pair)* |
900mm wide | up to 890kg/UDL** per beam pair |
1200mm wide | up to 720kg/UDL per beam pair |
1500mm wide | up to 530kg/UDL per beam pair |
1800mm wide | up to 450kg/UDL per beam pair |
2100mm wide | up to 385kg/UDL per beam pair |
*Load capacity is based on the strength of the horizontal steel beams - results may vary depending on shelf material
** Uniform distributed load |
Components:
2 x 1000mm High End Frames
8 x Beams (4 Shelf Levels)
4 x Shelves (4 Shelf Levels)
Product Brochure – Longspan Metal Shelving (PDF)
Assembly Instructions – Longspan Metal Shelving – 1000mm High (PDF)
