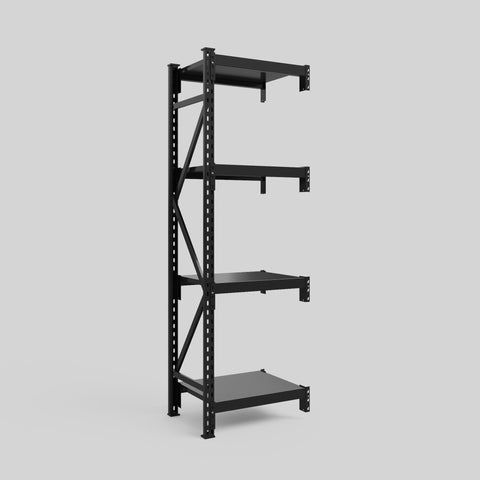

Longspan Metal Shelving - 2100mm High - Add-On Bay - Steel Shelf

SKU: LMS2100A-D500-W600-S-4
3 Reviews

Depth: 500mm
Width (Internal)*: 600mm

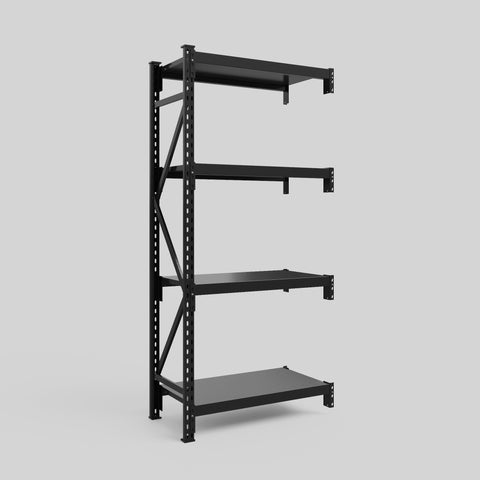

Shelf Levels: 4 x Shelf Levels (Standard)
Sale price$314.60

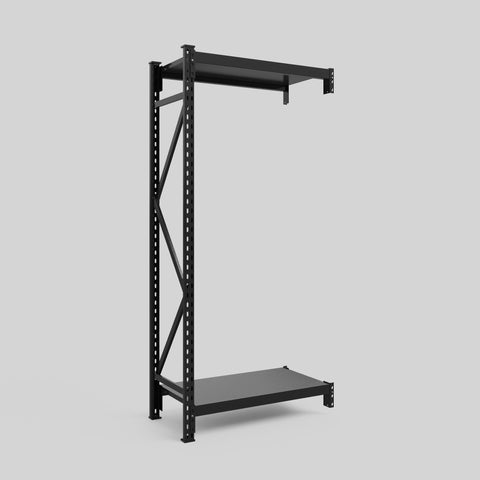

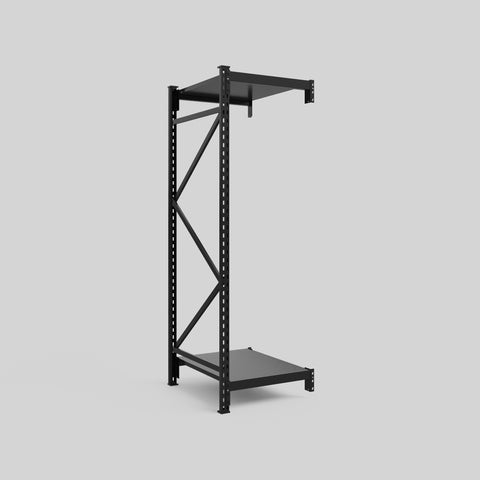

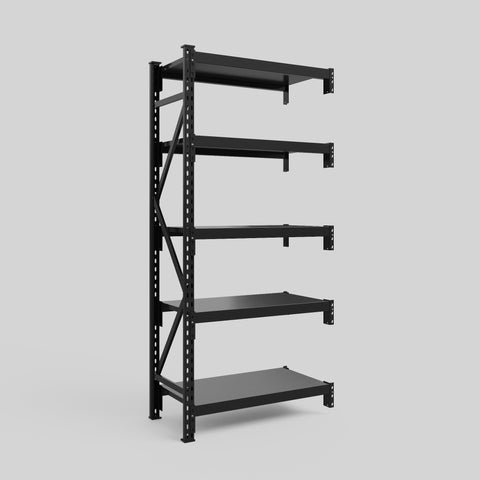

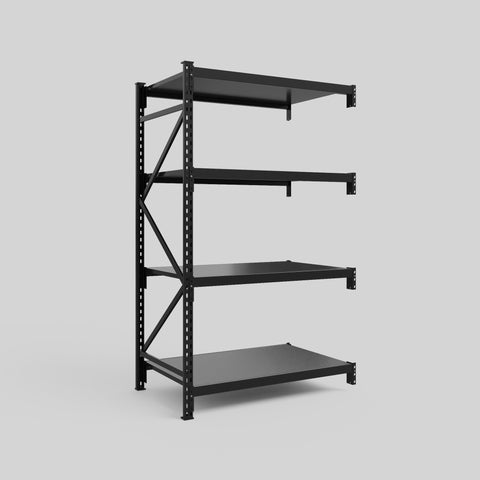

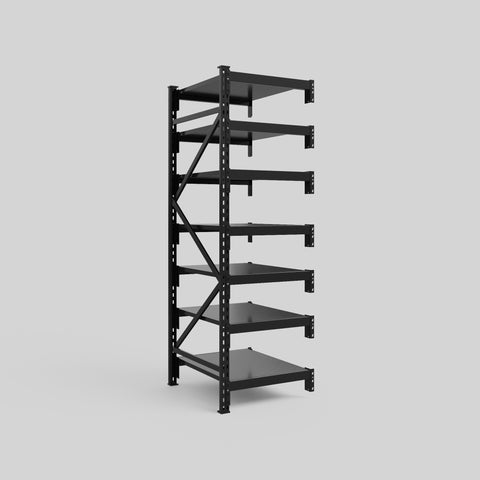

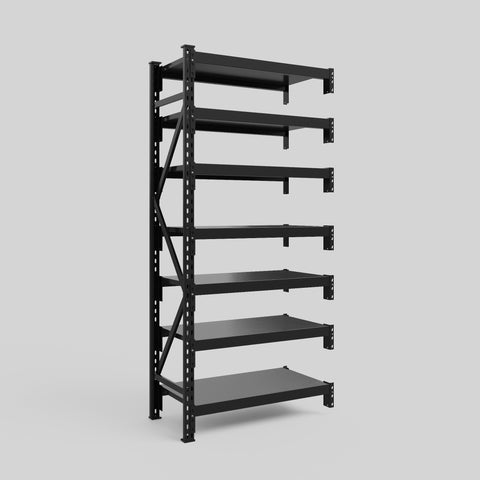

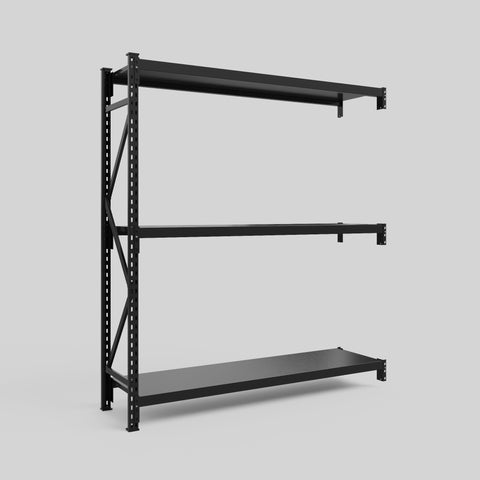

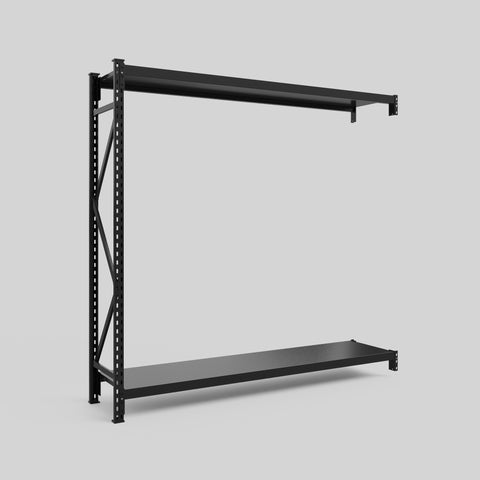

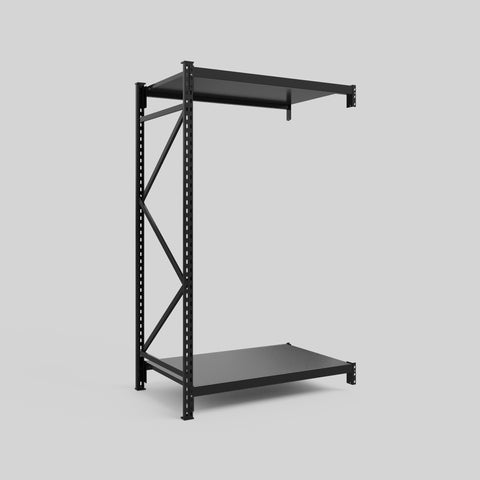

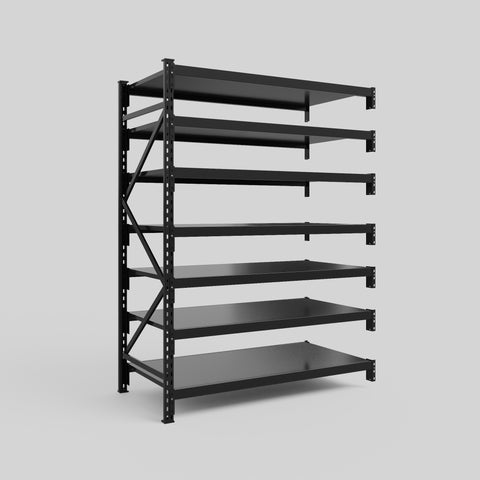

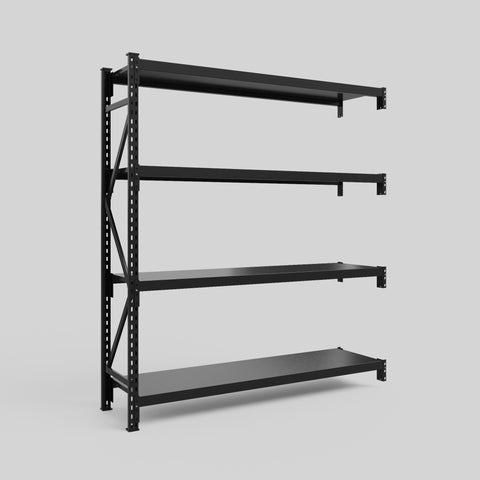

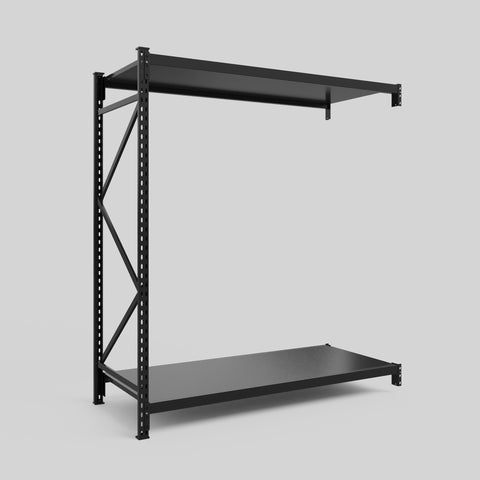

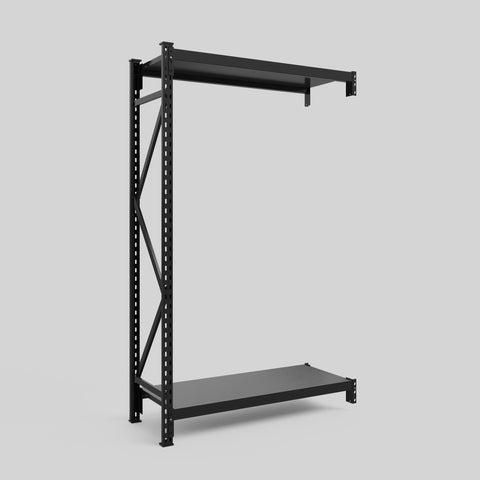

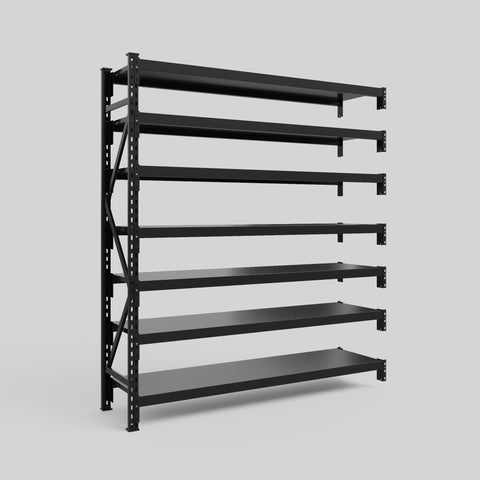

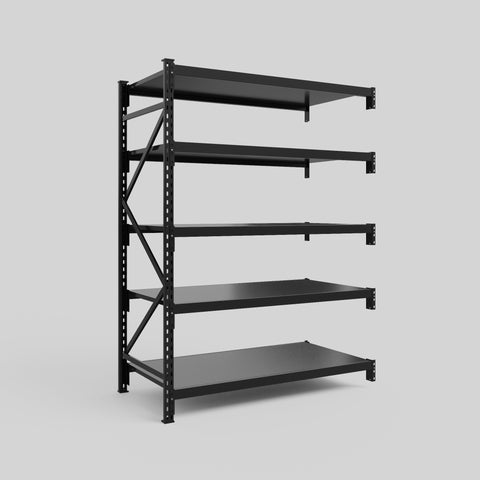

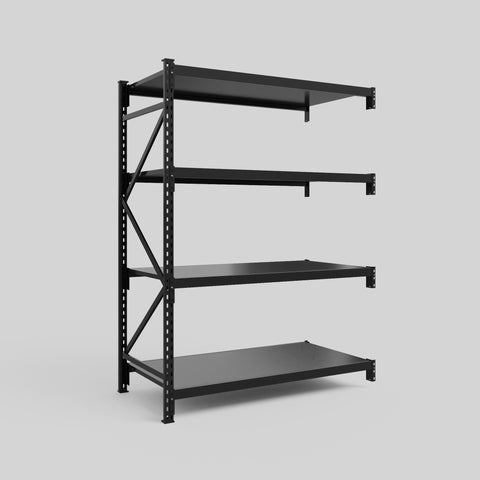

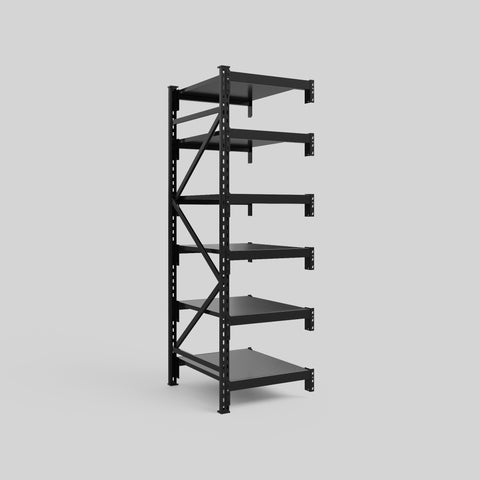

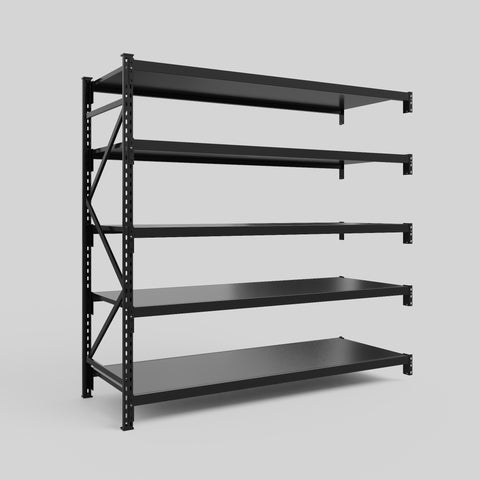

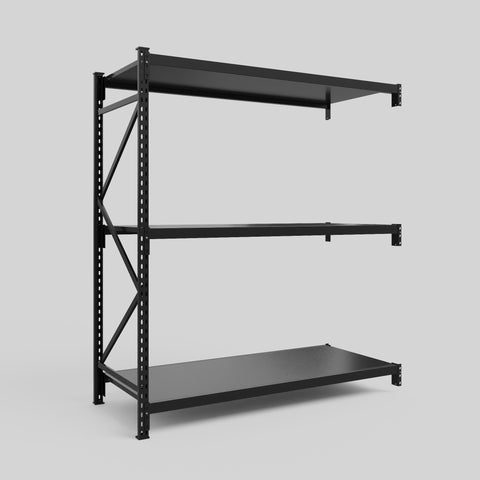

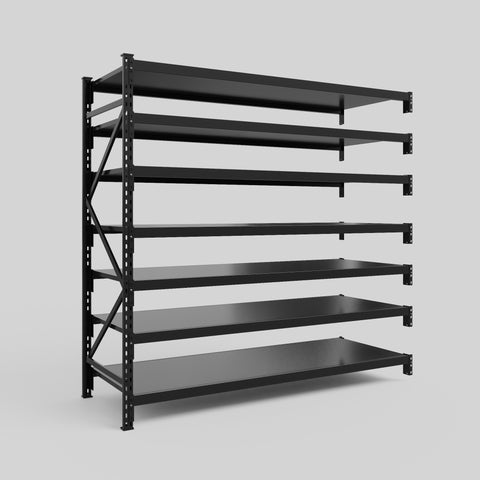

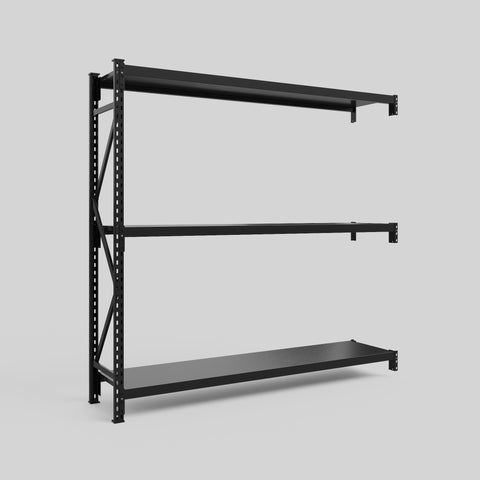

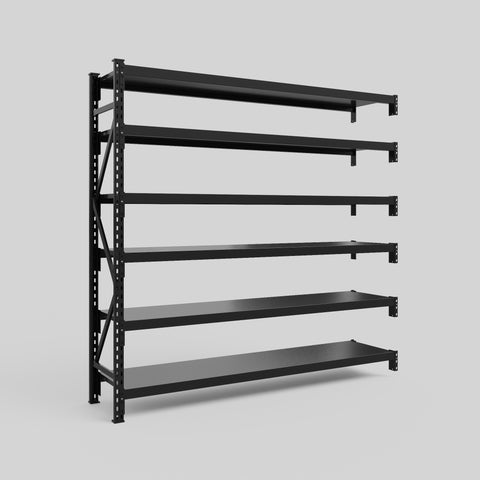

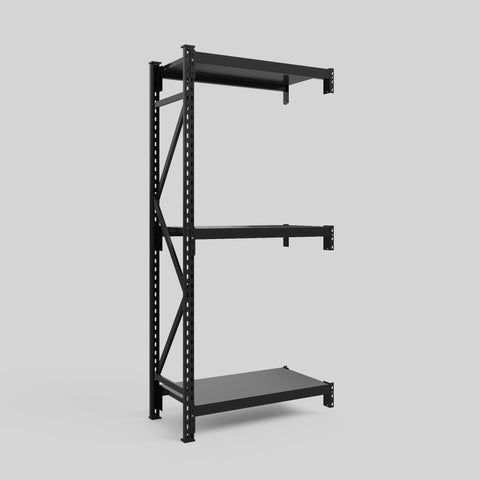

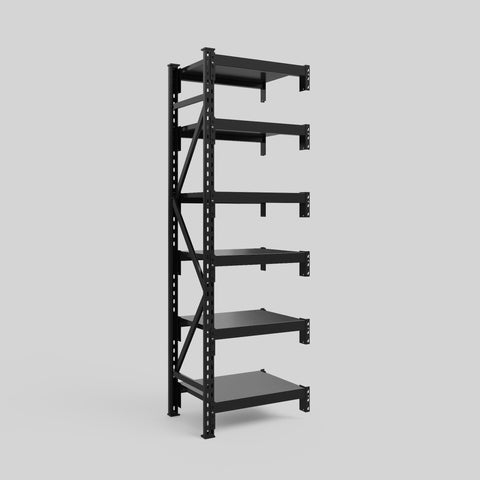

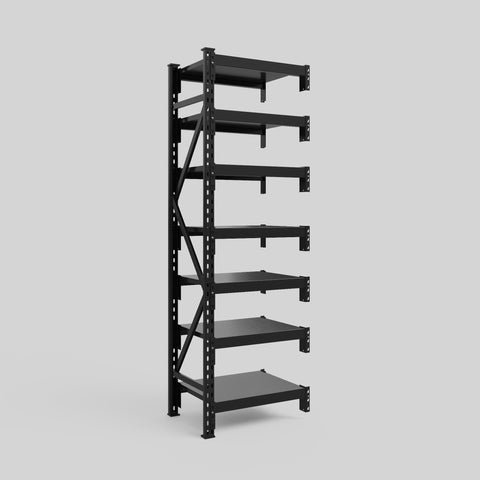

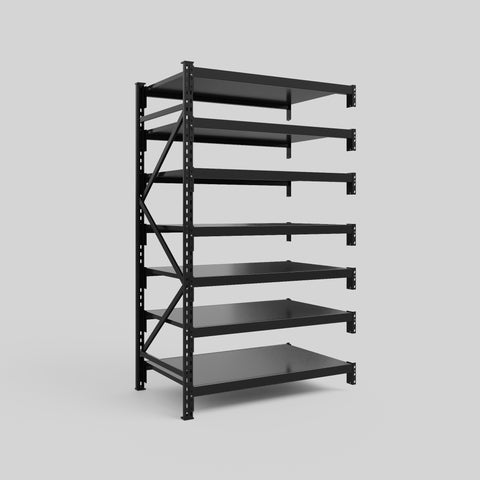

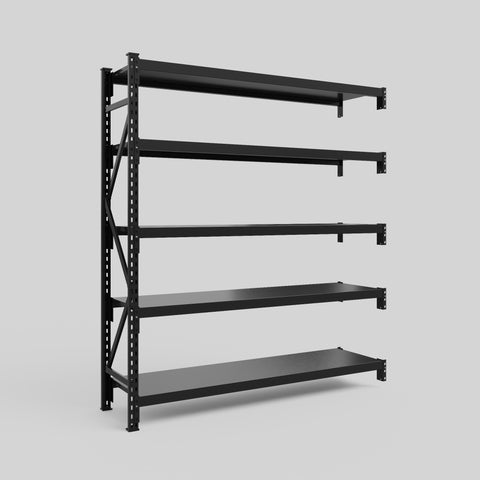

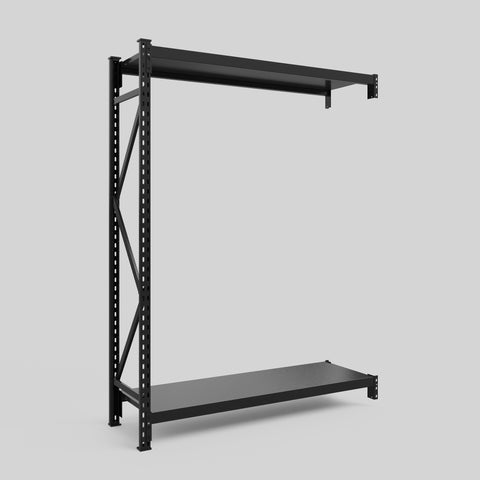

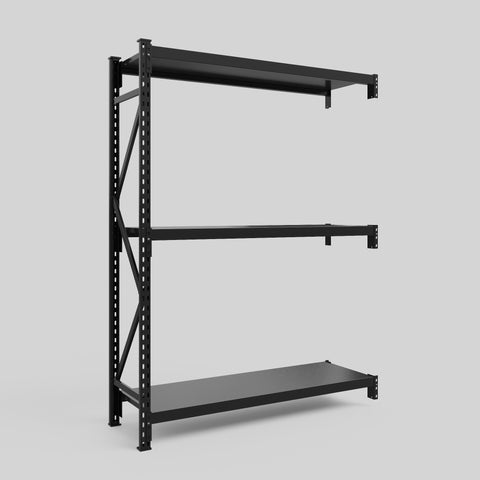

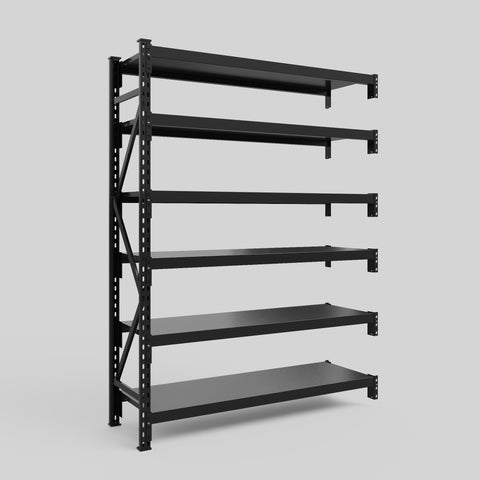

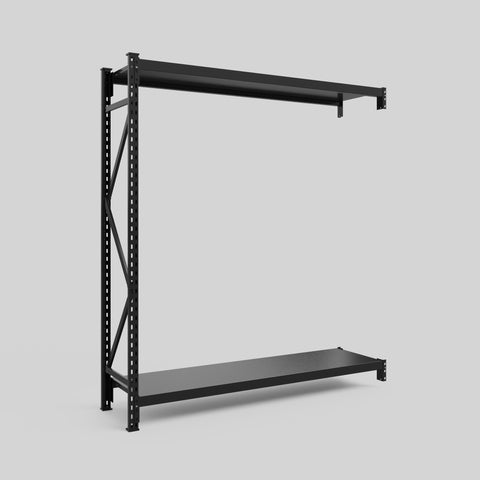

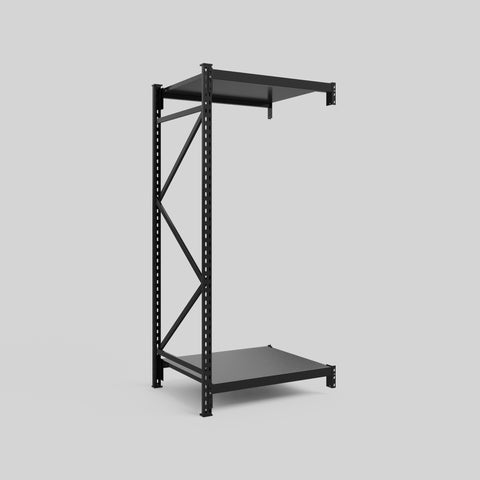

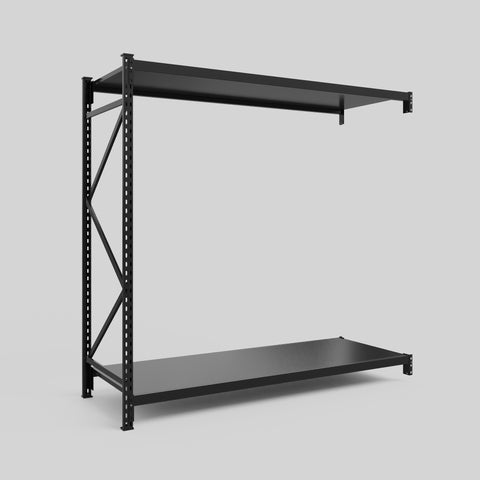

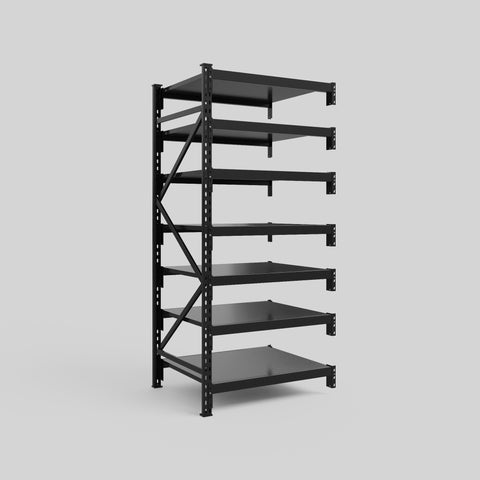

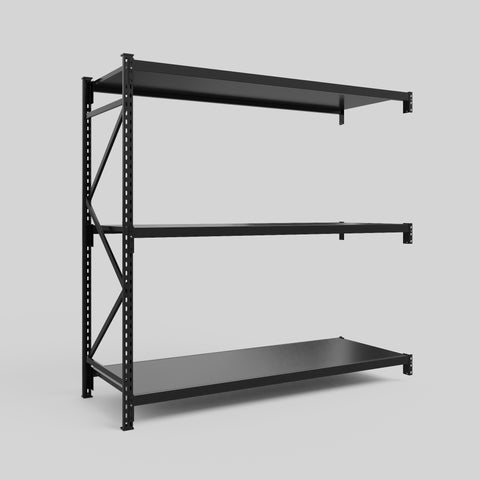

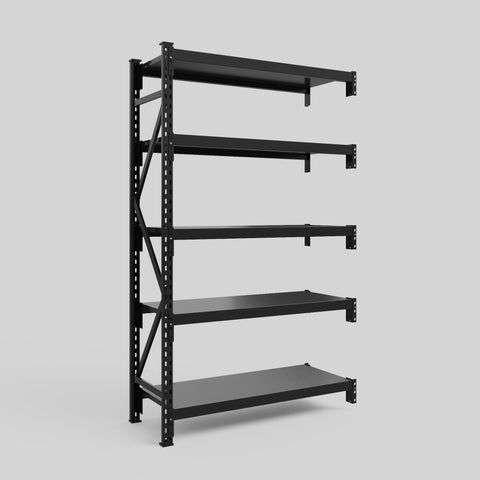

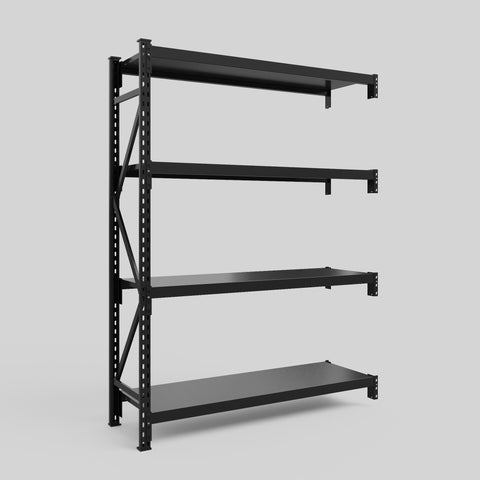

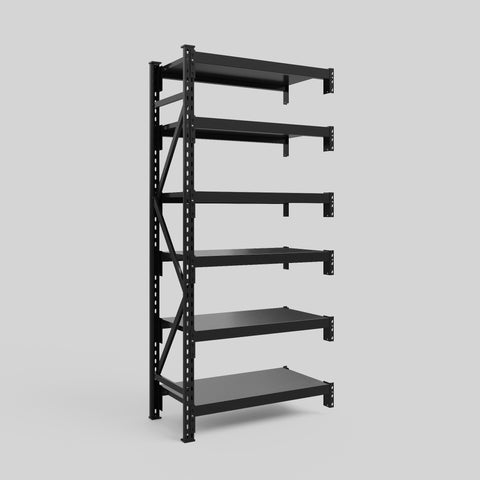

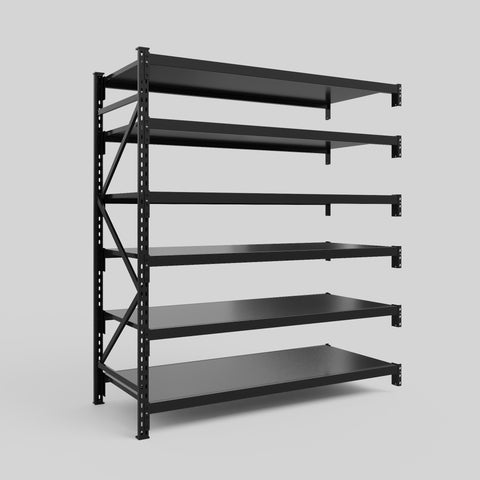

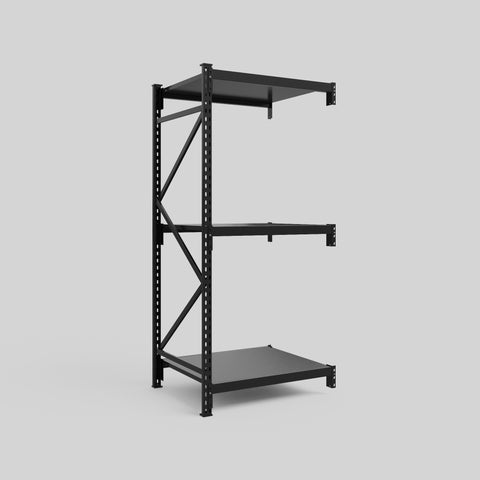

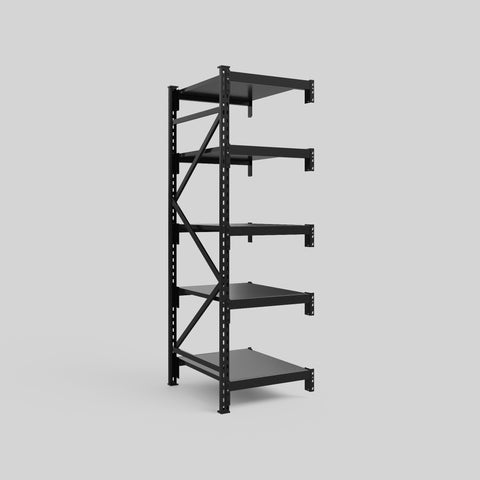

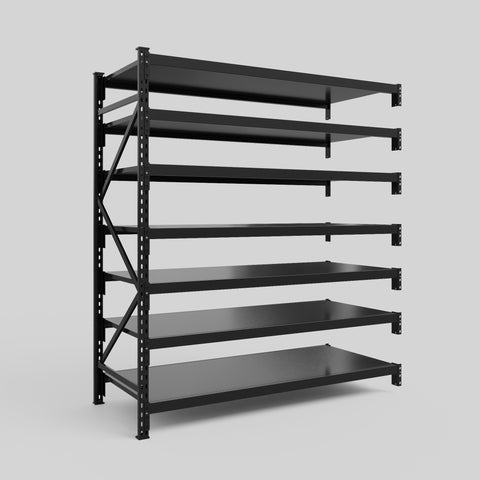

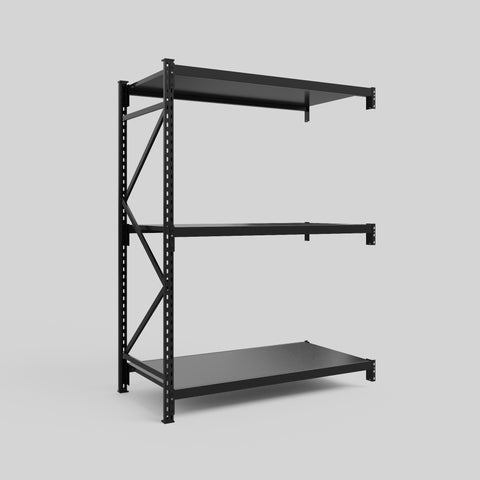

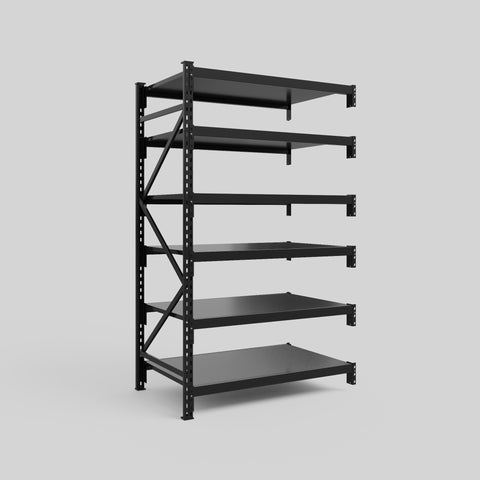

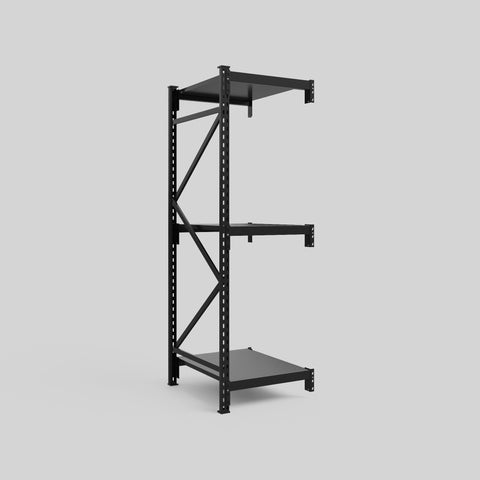

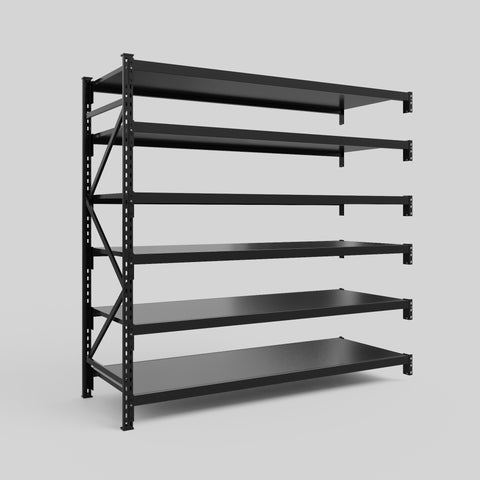

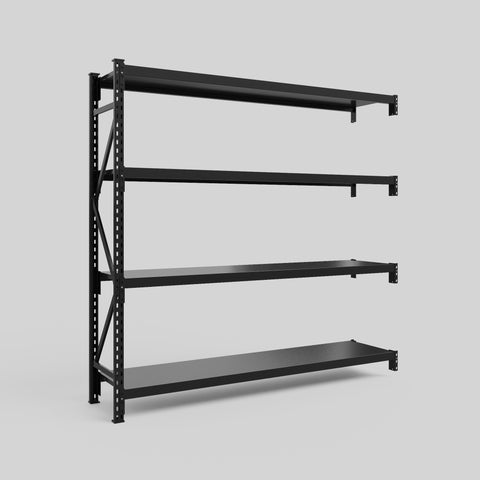

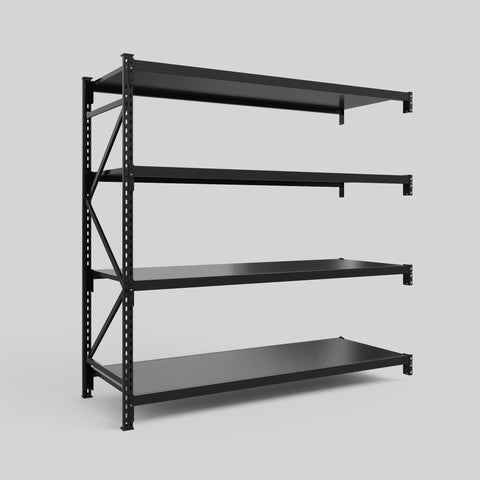

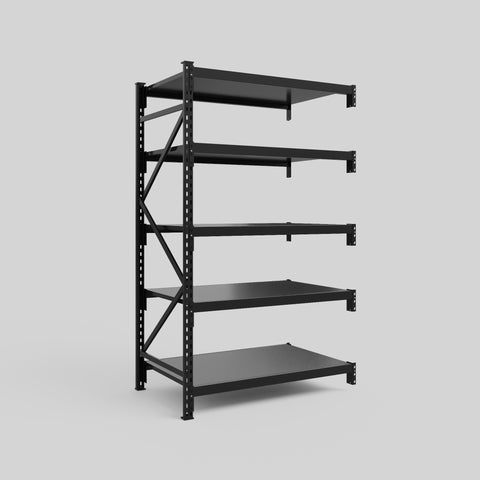

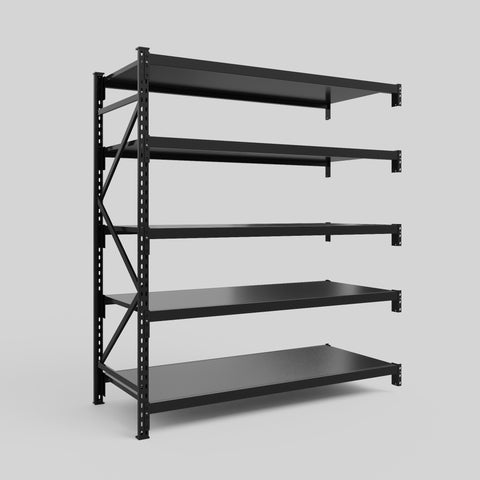

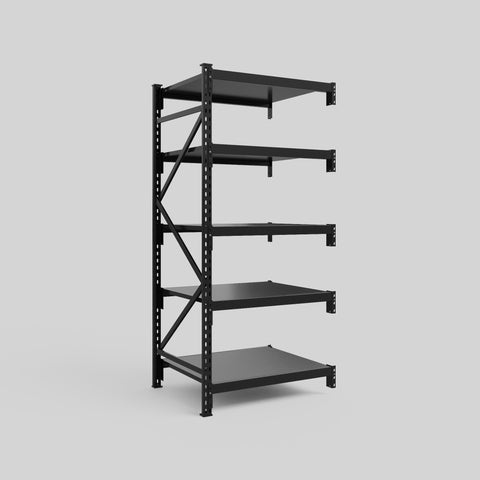

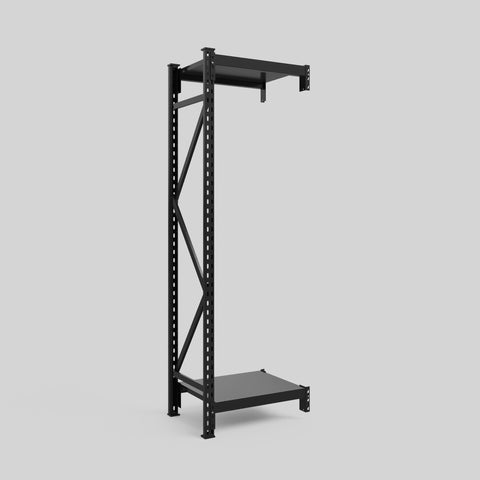

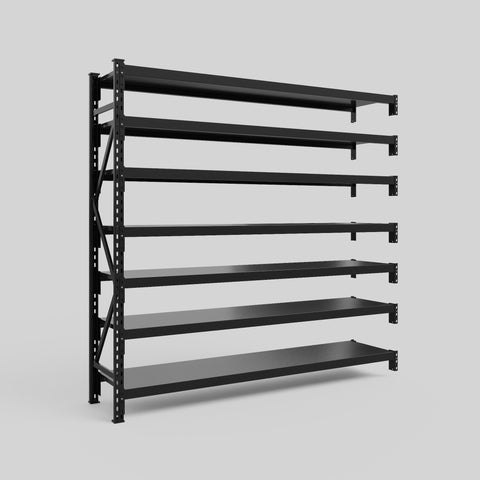

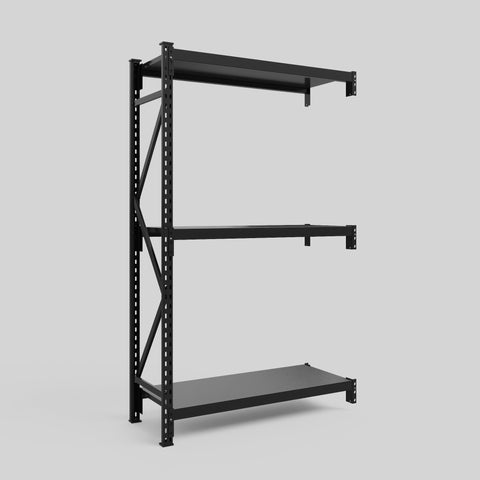

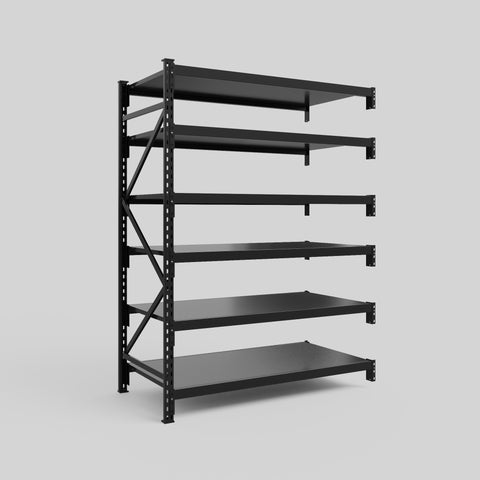

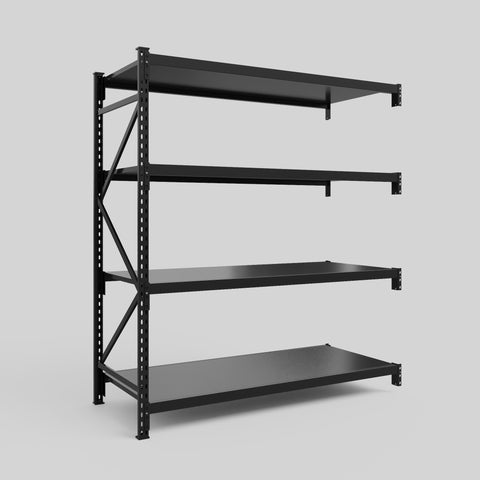

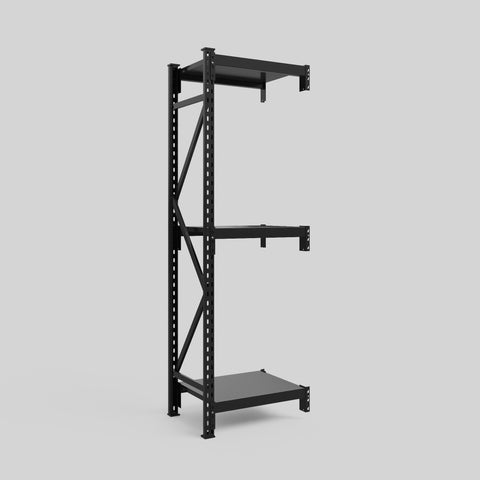

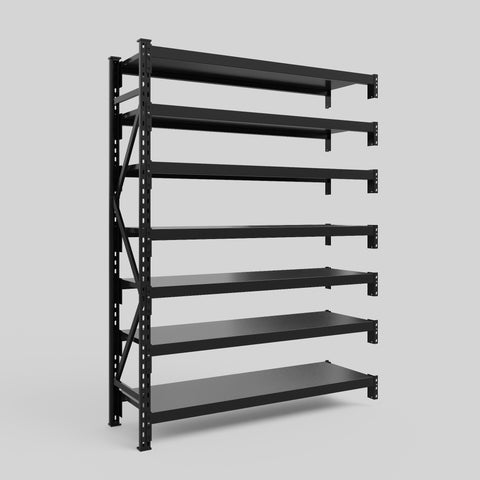

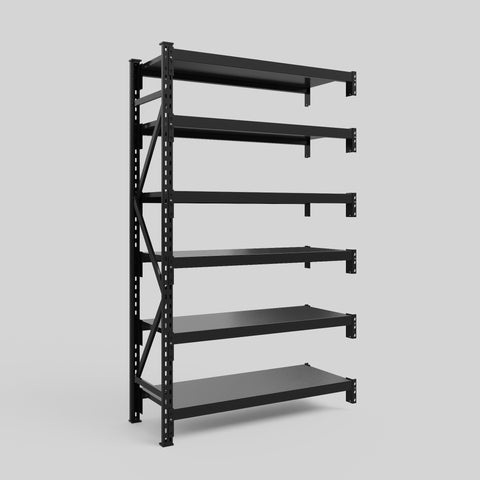

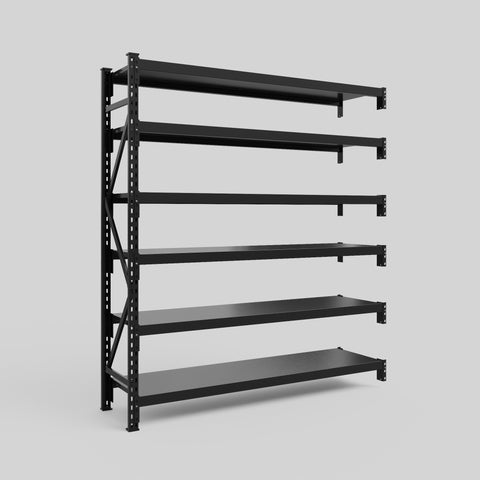

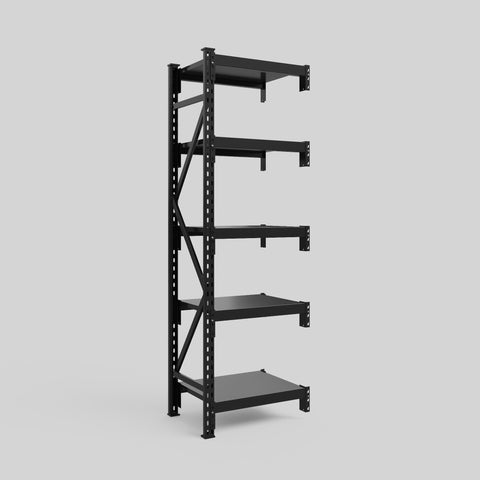

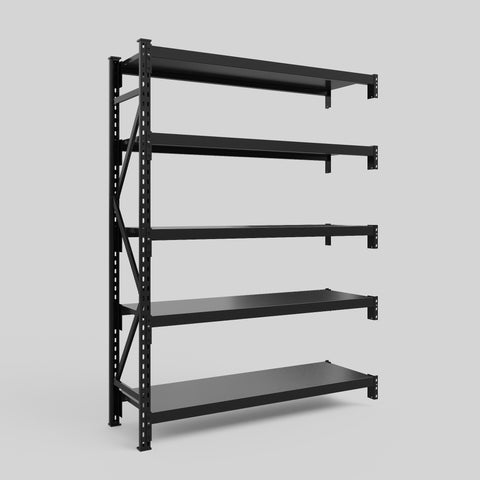

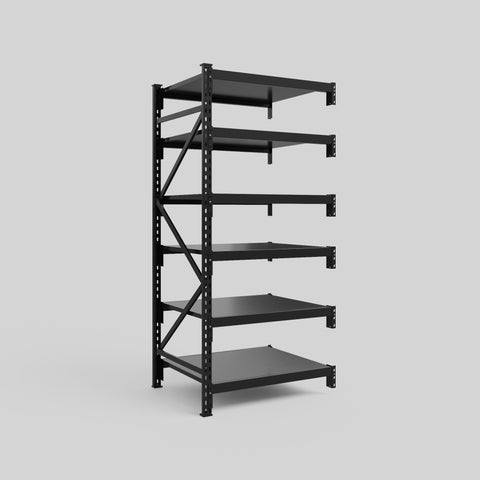

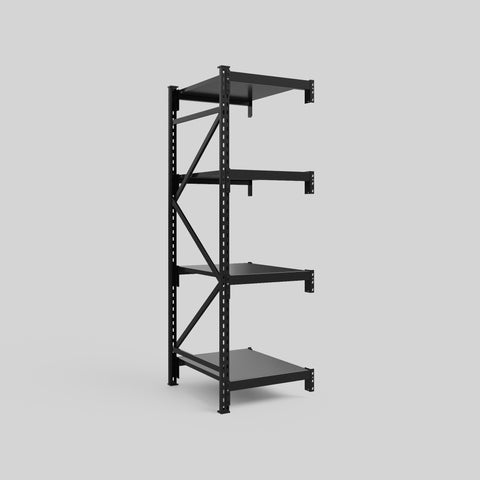

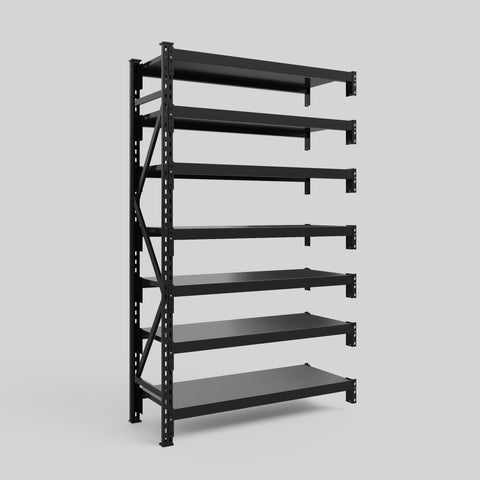

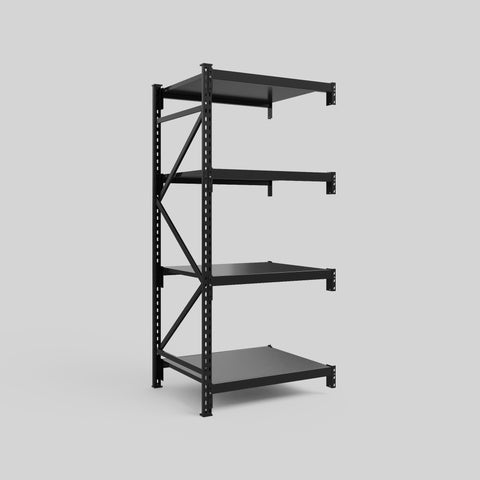

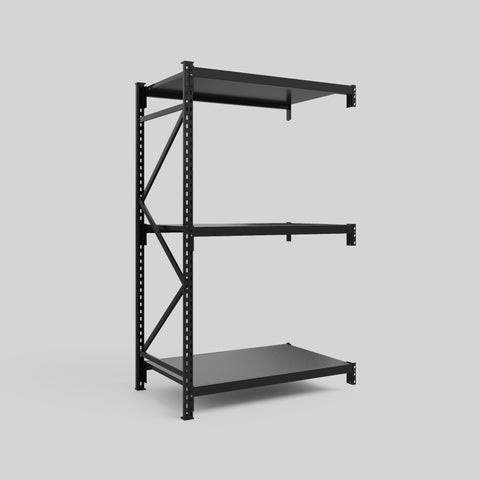

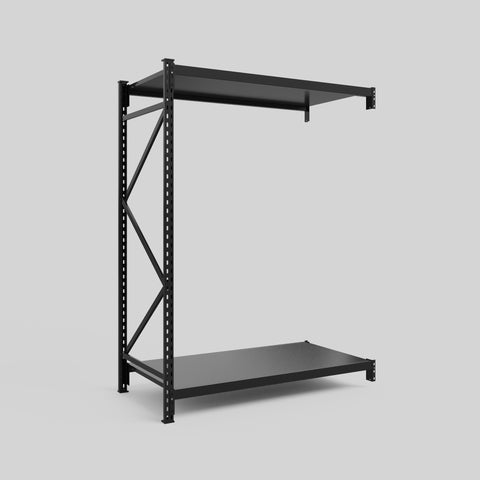

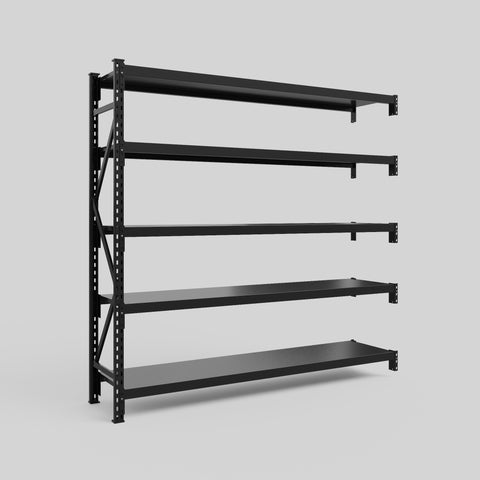

Add-on bays come with one end frame and are configured to connect to a full bay of shelving or the Steelspan modules.

View product on your mobile device to see how this system will look and fit into your space with the 3D models in the image gallery. 3D Models are of the 2100mm high x 500mm deep x 900mm wide and the 2100mm high x 500mm deep x 1800mm wide variants.


- Heavy duty shelving storage system
- All shelves are height adjustable at 50mm increments
- Free standing
- Industrial strength
- Black powder coated steel
- Quick installation
- Integrates with any other Steelspan storage system module


*NOTE: Width dimension shown is for internal measurement (i.e. Beam Length). Add 60mm for each shelving End Frame. So a Full Bay is Beam length plus 120mm ( 2 x End Frame), an Add-On Bay is Beam length plus 60mm (1 x End Frame). For example: A 900mm wide Full Bay of shelving is 900 + 120 = 1020mm wide (external).

- Black powder coated steel frame, beams
- Black steel shelving
- Load capacity

Beam Length Load Capacity (per beam pair)*
900mm wide up to 890kg/UDL** per beam pair
1200mm wide up to 720kg/UDL per beam pair
1500mm wide up to 530kg/UDL per beam pair
1800mm wide up to 450kg/UDL per beam pair
2100mm wide up to 385kg/UDL per beam pair
*Load capacity is based on the strength of the horizontal steel beams - results may vary depending on shelf material

** Uniform distributed load


1 x 2100mm High End Frame
8 x Beams (4 Shelf Levels)
4 x Shelves (4 Shelf Levels)

Product Brochure – Longspan Metal Shelving (PDF)

Assembly Instructions – Longspan Metal Shelving – 2100mm High (PDF)
