Module 17 Double with Overhead Cabinets

Modular storage system including a combination of work bench, tool drawers, cabinets, overhead cabinets and metal pegboard.

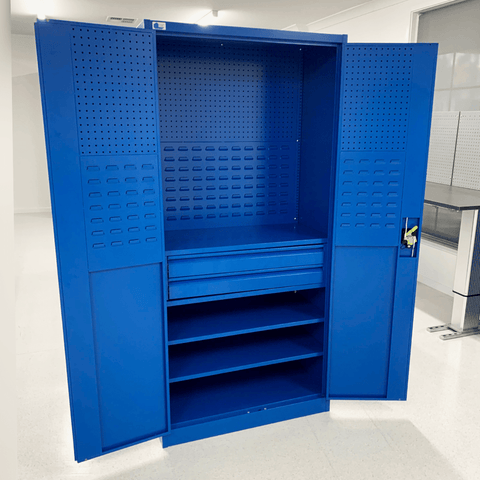

Tool Cabinet available for this Module! Contact Us for more info.

Features:

- Heavy duty work bench storage system
- Free standing
- Industrial strength
- Secure key lockable drawers and cabinets
- Quality ball bearing drawer runners
- Tool drawer dividers
- Quick installation
- Integrates with any other Steelspan storage system module

Options:

Colour:

- Blue
- Dark Grey

Work Bench Top:

- Laminated (Colour: Formica "Ironstone", 25mm)
- Stainless Steel - sleeve over Laminated work bench top
- MDF - Raw Finish

Pegboard Tool Display:

- Aluminium diamond plate (standard) - back only or back and side
- Stainless steel (option) - back only or back and side

- Cabinet Options: Cabinet 1865 (default), Tool Cabinet 1865 (Swap In - Available here)

Specifications:

- Powder coated steel drawers, cabinets and frame
- Metal pegboard
- Load capacity: 450kg/UDL

Dimensions:

Height: 2100mm
Width: 5700mm
Depth: 600mm

Cabinet 1865 Internal Dimension:

Height: 1757mm
Width: 888mm
Depth: 415mm

Overhead Cabinet Internal:

Height: 445mm
Width: 888mm
Depth: 212mm

D1 Large Drawer Internal:

Height: 320mm
Width: 810mm
Depth: 370mm

D4 4 Drawer Internals

Large Drawer Internal:
Height: 100mm
Width: 490mm
Depth: 370mm

Small Drawer Internal:
Height: 100mm
Width: 220mm
Depth: 370mm

Components:

4 x End Frame
1 x Open End Frame
16 x Beam 1800
8 x Beam 900
2 x Shelf (above cabinet)
2 x Work Bench Top 1800
2 x Tool Display 1800
4 x Overhead Cabinet
4 x 4 Drawer Cabinet
4 x Large Drawer Cabinet
2 x Cabinet 1860 (4 x Adj. Shelves)
2 x Pegboard Hook & Bin Kit

Note: Joint between 1800mm bench-top (Shown in image) is covered by stainless steel joiner (Provided) or with stainless steel bench-top sleeve (Optional).

Product Brochure - Work Bench and Storage Systems (PDF)

Assembly Instructions – Work Bench and Storage Systems (PDF)
