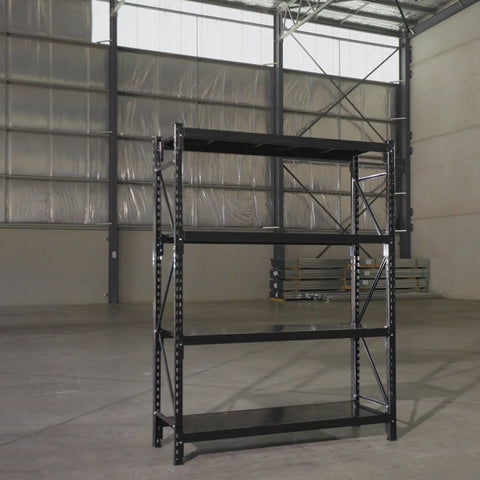

Tyre Storage Rack - 2100mm High
Calculate shipping and choose delivery/install options at checkout.
Description
Full bays come with two end frames and are configured to be standalone and can be extended with add-on bays of tyre storage racks. With available depths of 500mm or 800mm and widths of 900mm, 1200mm, 1800mm or 2100mm, Steelspan tyre storage racks are configurable to suit any need.
Steelspan tyre storage racks are also compatible with all other Steelspan modular systems so as your needs grow so does your system.
Features:
- Heavy duty shelving storage system
- All shelves are height adjustable at 50mm increments
- Free standing
- Industrial strength
- Black powder coated steel
- Quick installation
- Integrates with any other Steelspan storage system module
Specifications:
- Black powder coated steel frame and beams
Dimensions:
- 2100mm High
- Configurable depth of 500mm or 800mm
- Configurable width of 900mm, 1200mm, 1800mm or 2100mm
*NOTE: Width dimension shown is for internal measurement (i.e. Beam Length). Add 60mm for each shelving End Frame. So a Full Bay is Beam length plus 120mm ( 2 x End Frame), an Add-On Bay is Beam length plus 60mm (1 x End Frame). For example: A 900mm wide Full Bay of shelving is 900 + 120 = 1020mm wide (external).
Load capacity
Beam Length | Load Capacity (per beam pair)* |
900mm wide | up to 890kg/UDL** per beam pair |
1200mm wide | up to 720kg/UDL per beam pair |
1500mm wide | up to 530kg/UDL per beam pair |
1800mm wide | up to 450kg/UDL per beam pair |
2100mm wide | up to 385kg/UDL per beam pair |
*Load capacity is based on the strength of the horizontal steel beams - results may vary depending on shelf material
** Uniform distributed load |
Components:
Steel End Frames
Steel Horizontal Beams
